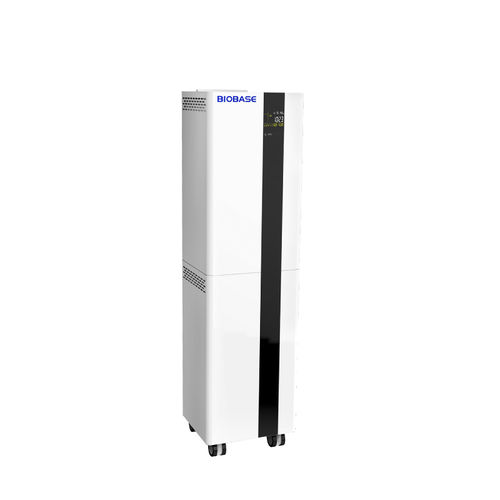

Vertical air purifier BKB-G-1600-D

plasmaaerosol adsorptionwith ionization module

Product overview
Brand: BIOBASE
Origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply

Application
Suitable for general operating rooms, delivery rooms, blood wards, burn wards, protective isolation wards, intensive care units, disinfection supply centers, intensive dialysis centers, examination rooms, treatment rooms and infectious disease consultation rooms.

Features

• Designed for human–machine coexistence to allow operation in occupied medical spaces.
• Metal shell resistant to moisture and corrosion.
• LCD displays real-time room humidity; 6 programmable on/off groups within 24 hours; fan speed adjustable in three levels.
• Four working modes: manual, timing, automatic and temporary.
• Equipped with plasma generator and negative-ion module fault alarm, filter maintenance warning; standard plasma generator rating 8000 V with nominal life ≥8000 h (service life may reach up to 30000 h depending on conditions).
• Easy-to-remove filter and built-in high-concentration negative-ion generator; dual fans and dual plasma generators for high air volume and large-space disinfection capability.

Technical parameters
Model: BKB-G-1600-D
Sterilization method: Plasma and electrostatic adsorption
Max. sterilizable volume: ≤160 m³
Circulating air volume: ≥1600 m³/h
Plasma generator life: ≥8000 h (nominal)
Plasma density: 3.38×10^17 m^-3 ~ 1.84×10^18 m^-3
Ozone leakage: ≤0.01 mg/m³
Negative ion density: ≥5×10^6 PCS/cm³
Noise: ≤55 dB(A)
Power supply: AC220V±22V, 50Hz±1Hz
Power: ≤200 W
Net weight: 40 kg
Gross weight: 45.5 kg
External size (L×W×H): 1340×370×360 mm
Package size (L×W×H): 1420×440×430 mm

Specifications

• Model: BKB-G-1600-D
• Sterilization: Plasma + electrostatic adsorption
• Applicable volume: ≤160 m³
• Recirculation airflow: ≥1600 m³/h
• Plasma generator life: ≥8000 h
• Low ozone emission: ≤0.01 mg/m³
• Negative ion density: ≥5×10^6 PCS/cm³
• Noise level: ≤55 dB(A)
• Power: ≤200 W; Supply: AC220V±22V, 50Hz±1Hz
• Dimensions: 1340×370×360 mm; Net weight: 40 kg
