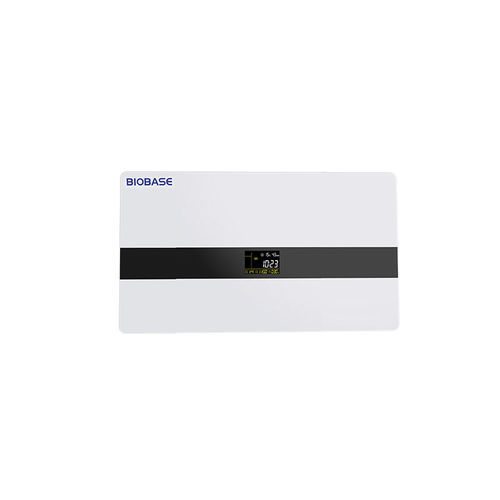

Wall-mounted air purifier BKZII-B-800-D

plasmawith remote controloperating room

Introduction
The wall-mounted BKZII-B-800-D plasma air sterilizer combines a plasma sterilization zone and an electrostatic dust-collection zone to inactivate airborne pathogens and capture charged particulates. Designed for continuous use in clinical environments such as operating theatres, delivery rooms, blood banks and isolation wards to reduce microbial load and odors while maintaining safe ozone emission levels.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models available: BKZII-B-800-D, BKZII-B-1000-D, BKZII-B-1300-D

Features

• Safe for occupied medical spaces (human and machine coexistence).
• Removes organic gases and common hospital odors.
• Plasma sterilization combined with electrostatic adsorption for high microbial reduction and particle capture.
• Real-time monitoring of room temperature and humidity.
• Three-speed adjustable fan.
• Multiple operation modes: manual, timing, automatic, temporary.
• Programmable timing with 9 program groups.
• Automatic cumulative working hours for maintenance tracking.
• LCD display and far-infrared remote control for convenient operation.
• One-key lock (manual lock or automatic lock after inactivity).
• Component failure alarms with separate displays per function.
• Service reminders: plasma life alarm at 30,000 hours; filter alarm at 2,000 hours.

Technical Parameters (table represented as lines)
Model: BKZII-B-800-D | BKZII-B-1000-D | BKZII-B-1300-D
Type: Wall mounted
Disinfection Type: Plasma and electrostatic adsorption
Applicable Space: ≤80m3 | ≤100m3 | ≤130m3
Circulating Air: ≥800m3/h | ≥1000m3/h | ≥1300m3/h
Shell Material: Metal shell
Ozone Leakage: ≤0.02mg/m3
Plasma Density: 3.26×10^17 m^-3 ~ 6.01×10^17 m^-3 | 3.18×10^17 m^-3 ~ 6.15×10^17 m^-3 | 3.22×10^17 m^-3 ~ 6.36×10^17 m^-3
Negative Ion Generation: ≥5×10^6 PCS/cm3
Electric Field Intensity of Sterilization Area: 8000V
Electric Field Intensity of Dust Accumulation Area: 4000V
Natural Bacteria Extinction Rate: ≥90%
Sterilization Rate of Staphylococcus Albus: ≥99.9%
Noise: ≤55dB(A)
Consumption: ≤100W | ≤120W | ≤150W
Power Supply: AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional, external transformer)
External Size (W*D*H): 693*360*160mm | 800*360*160mm | 1050*360*160mm
Net Weight: 15.5kg | 17.5kg | 22.5kg
Package Size (W*D*H): 782*428*252mm | 880*428*252mm | 1150*446*258mm
Gross Weight: 18kg | 20kg | 25.5kg

Specifications / technical details

• Models: BKZII-B-800-D, BKZII-B-1000-D, BKZII-B-1300-D.
• Mounting: Wall-mounted installation suitable for clinical walls and cabinets.
• Primary sterilization technology: Plasma sterilization zone with electrostatic dust accumulation.
• Air throughput: 800 / 1000 / 1300 m3/h depending on model.
• Applicable room volume: up to 80 / 100 / 130 m3 depending on model.
• Low ozone emission: ≤0.02 mg/m3 to meet medical indoor air safety requirements.
• High bactericidal performance: natural bacteria extinction ≥90%; Staphylococcus albus sterilization ≥99.9%.
• Operational noise suitable for clinical environments: ≤55 dB(A).
• Power consumption varies by model: ≤100W, ≤120W, ≤150W.
• User interface and controls: LCD, far-infrared remote, three-speed fan, multiple modes, programmable timing, maintenance alarms and component-failure indicators.
• Dimensions, net/gross weight and packaging data provided per model for logistics planning.
