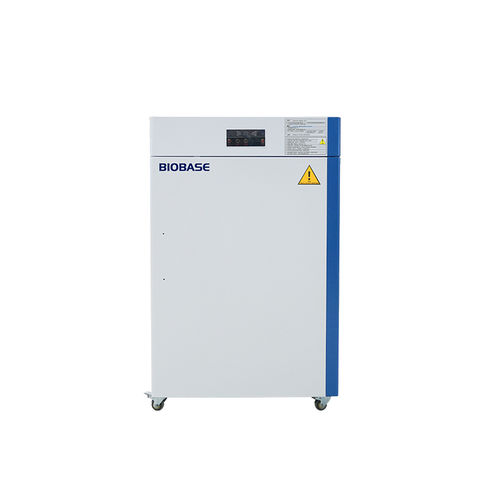

Sterilization cabinet BJPX-SVO200

for laboratory glasswarefor hazardous materialslaboratory

Product overview
UV sterilization cabinet for heat-sensitive items. Brand: BIOBASE. Models: BJPX-SVO200 (with ozone) and BJPX-SV200 (without ozone). Capacity: 200 L. Origin: CHINA.

Applications

• Glassware, porcelain and ceramic items
• Production supplies and non-woven materials
• Currency and paper composite materials
• Cleaning tools, tableware, towels, clothing and footwear
• Heat-sensitive packaging materials and other products

Key features

• Three-sided high-intensity UVC irradiation for wide coverage
• Ozone-assisted disinfection available (BJPX-SVO200) to treat areas not directly exposed to UV
• UV lamp material: quartz glass for efficient UVC emission
• Standard capacity 200 L with two adjustable shelves (500 × 520 mm)
• Compact internal footprint suitable for laboratory and production environments
• Clear recommended exposure guidance for bacteria, spores, viruses and fungi

Technical specifications
Model: BJPX-SVO200 | BJPX-SV200
Capacity: 200L
Type: With ozone (BJPX-SVO200) | Without ozone (BJPX-SV200)
UV ray wavelength: 253.7/184.9 nm (SVO) | 253.7 nm (SV)
Sterilization method: 2 sides UV + 1 side ozone (SVO) | 3 sides UVC (SV)
UV lamp material: Quartz glass
Altitude: <2000 m
Shelf: 500 × 520 mm, standard 2 pcs, optional extras available
Standard accessories: (with ozone) Shelf ×2, doorknob ×1, UV lamp ×4, Ozone UV lamp ×2; (without ozone) Shelf ×2, doorknob ×1, UV lamp ×6
Power consumption: 120 W
Power supply: AC 220V, 50/60Hz (standard); AC 110V, 50/60Hz (optional, external transformer)
Internal size: 518 × 523 × 778 mm
External size (W × D × H): 750 × 663 × 1200 mm
Net weight: 81 kg
Package size (W × D × H): 875 × 788 × 1365 mm
Gross weight: 100 kg

Recommended UV exposure
Microorganism Species | Exposure Dose | Exposure Time
Bacterial propagules | ≥10000 μW·s/cm² | 10 min
Bacterial spores | ≥100000 μW·s/cm² | 10 min
Virus | 10000 μW·s/cm² ≤ Dose ≤ 100000 μW·s/cm² | 10 min
Fungal spores | General dose ≤ 100000 μW·s/cm²; Special dose up to 600000 μW·s/cm² | 60 min
When target microorganism is unknown | ≥100000 μW·s/cm² | 10 min

Accessories & packaging

• Standard: 2 shelves, 1 doorknob, UV lamps (quantity per model)
• Packaging: foam and carton; package dimensions and gross weight as specified
• Optional extra shelves and customized configurations available on request

Notes
Recommended operating temperature for effective UV disinfection: 20°C–40°C. If ambient temperature is outside this range, extend exposure time as required. Follow safety precautions for UVC and ozone exposure during operation and maintenance.
