Automatic glassware washer BK-LW series

laboratorywater-based detergentwater

Introduction

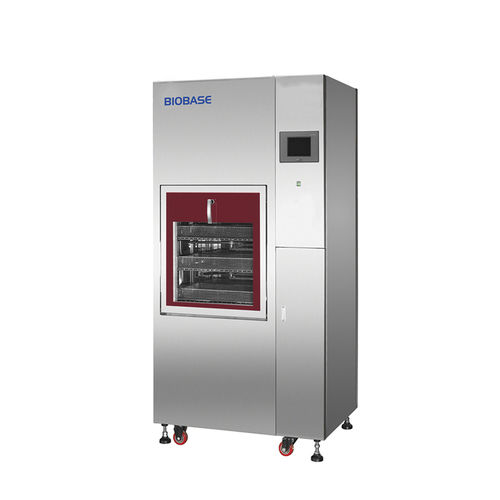

The BIOBASE BK-LW series washer-disinfector provides automated washing, thermal disinfection and HEPA drying for laboratory and medical glassware. Designed for traceable processing of trays, bottles, pipettes and hollowware, it reduces manual handling and supports compliance with clinical decontamination workflows.

Key features

• Double tempered glass doors to limit cross-contamination and allow process observation.
• 7" color LCD touch screen with programmable control: 12 preset programs and up to 100 PLC custom programs; 3-level password protection.
• High-efficiency cleaning with rotary nozzles above, below and between racks to ensure full spray coverage.
• Thermal disinfection capability: water heating system maintains temperatures ≥93°C to meet international disinfection requirements.
• HEPA-filtered drying system capable of drying internal surfaces of tubular items.
• Two independent peristaltic pumps for detergent and neutralizer dosing; liquid-level sensor and integrated printer/USB for traceability.

Standard washing procedure (customizable)

• Pre-cleaning
• Enzymatic wash
• Rinse
• Thermal disinfection
• Glazing/finish wash
• Drying

Technical parameters (models: BK-LW220D | BK-LW320D | BK-LW420D)
Cleaning capacity | 220L | 320L | 420L
Washer load level | 2 | 3 | 2
Water wash power | 0.75 kW | 1.5 kW | 1.5 kW
Water heater power | 5 kW | 5 kW / 15 kW | 5 kW / 15 kW
MAX. power | 6 kW | 7 kW / 17 kW | 7 kW / 17 kW
Water consumption/step | 20L | 22L | 25L
Tank internal temperature | 0~99°C (all models)
Water supply pressure | 0.3~1.0 MPa (all models)
Washing pump | Sweden 800 L/min | Sweden 1000 L/min | Sweden 1000 L/min
Standard cleaning racks | 4 layers | 5 layers | 5 layers
Drying function | YES (all models)
Dry power | 3.6 kW | 3.6 kW | 3 kW
Noise | <55 dB | <55 dB | <60 dB
Control system | 7" color LCD touch screen, microprocessor; 12 presets + 100 PLC programs; 3-level password

Applications and traceability

• Intended for clinical laboratories, hospital sterile processing departments and medical device reprocessing labs for glassware and hollow instruments.
• Integrated printer and USB port support process documentation and traceability records.
• Peristaltic dosing and level sensors enable reproducible chemical dosing and automated neutralization steps.

Optional accessories & power

• Optional trolley (BK01) and additional rack types available.
• Standard power: AC220V 50Hz or AC380V 50Hz; other voltages/frequencies per manufacturer options.
