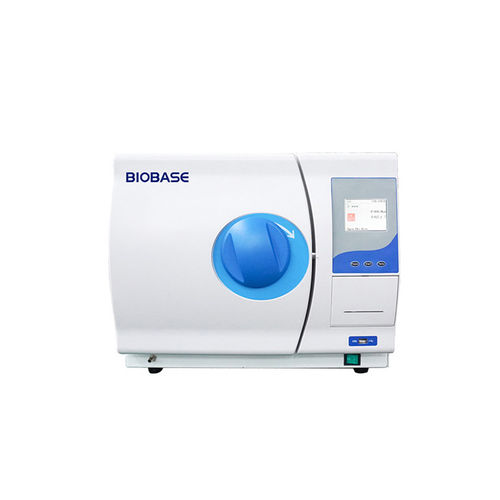

Ophthalmic sterilizer BKM-K18N

dentalaesthetic medicinelaboratory

Introduction
The BKM-K18/23N series are Class N table-top autoclaves designed for gravity displacement steam sterilization. Cold air in the chamber is discharged by gravity until steam saturation is reached and the set pressure and temperature are achieved for effective sterilization. Suitable for dental clinics, ophthalmic clinics, beauty centers, operating rooms and laboratories. Intended for sterilization of glassware, unwrapped metal instruments and unencapsulated solid instruments.

Product details
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BKM-K18N, BKM-K23N

Features

• Chamber material: electropolished S30408 stainless steel for corrosion resistance and easy cleaning.
• Steam generation: internal heater; no external steam source required.
• User interface: 3.5-inch capacitive color display showing pressure, temperature, time and alarm codes in real time; audible buzzer at cycle end.
• Records: standard USB port for program data; optional printer for printed records.
• Storage rack: 1 rack with 3 trays to optimise chamber space and loading flexibility.
• Control system: single-chip microcomputer for automatic control of heating, sterilization and exhaust.
• Operation: mechanical one-key start with rated life ≥ 100,000 operations.
• Sterilization programs: selectable cycles at 121°C and 134°C.

Safety Protection

• Over-temperature automatic protection.
• Heating tube dry-burn protection.
• Safety door interlock to prevent accidental opening.
• Double over-voltage protection and over-current/leakage protection.
• Door detection to prevent unsafe operation.

Technical Parameters
Model: BKM-K18N / BKM-K23N
Capacity: 18 L / 23 L
Door: Manual
Display: 3.5-inch LCD
Max designed pressure: 0.28 MPa
Working pressure: 0.23 MPa
Max designed temperature: 150°C
Working temperature: 121°C / 134°C
Temperature precision: 0.1°C
Chamber material: S30408 stainless steel (electropolished)
Chamber size: φ250×350 mm / φ250×450 mm
Altitude: ≤ 2500 m
Rack: 1 rack with 3 trays (standard)
Standard accessories: aluminum tray, USB port
Optional accessories: stainless steel tray, printer
Power consumption: 1.6 kW
Power supply: AC220V, 50/60Hz (standard); AC110V, 50/60Hz (optional)
External dimensions (W×D×H): 650×495×410 mm / 700×495×410 mm
Net weight: 32 kg / 36 kg
Package size (W×D×H): 810×610×590 mm
Gross weight: 47 kg / 50 kg

Characteristics / technical specifications

• Type: table-top autoclave, Class N (gravity displacement).
• Available models: BKM-K18N (18 L) and BKM-K23N (23 L).
• Sterilization temperatures: 121°C and 134°C (selectable), temperature accuracy 0.1°C.
• Data interface: USB for program record; printer optional.
• Power: standard AC220V 50/60Hz, AC110V optional; consumption 1.6 kW.
• Applications: dental, ophthalmic, aesthetic clinics, operating rooms and laboratory glass/metal instrument sterilization.
