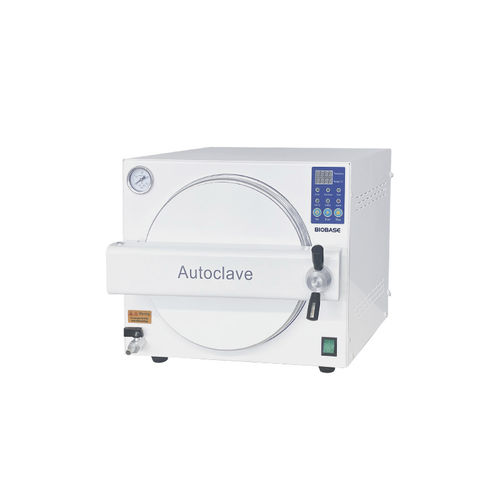

Ophthalmology sterilizer BKX-T18E

dentalaesthetic medicinelaboratory

Overview / Applications
Table top Class N autoclave designed for sterilization of glassware, unwrapped metal instruments and solid items. Suitable for dental clinics, ophthalmology, beauty salons, small operating rooms and laboratories requiring saturated steam sterilization.

Product information

• Brand: BIOBASE
• Model: BKX-T18E / BKX-T23E
• Origin: CHINA
• Delivery time: Within 7 days
• Supply: Factory direct

Features

• Sterilization chamber and sealing cover in SUS304 stainless steel.
• Microcomputer control with automatic circulation; selectable sterilization programs at 121°C and 134°C.
• LED display with touch buttons for easy operation.
• Built-in steam generator for rapid saturated steam production.
• Standard test interface for routine validation.
• Automatic protections: over-temperature, over-pressure and low-water level (dry burn protection).
• Acoustic end-of-cycle alarm and automatic shutdown; automatic cold-air and steam discharge.

Technical parameters
Model: BKX-T18E / BKX-T23E
Capacity: 18 L / 23 L
Chamber size: φ250×370 mm (18L) / φ250×452 mm (23L)
Door: Manual
Display: LED with touch buttons
Max design pressure: 0.25 MPa
Working pressure: 0.22 MPa
Max design temperature: 139℃
Working temperature: 121/134℃
Temperature precision: 0.1℃
Chamber material: SUS304 stainless steel
Power consumption: 1.5 kW (18L) / 2 kW (23L)
Power supply: AC220V 50Hz (standard); AC110V 60Hz (optional)
Altitude: ≤2500 m
Rack: 1 rack with 2 trays
Standard accessories: protective gloves, draining hose, door seal
External size (W×D×H): 500×400×350 mm (18L) / 600×400×350 mm (23L)
Net weight: 24 kg / 27 kg
Gross weight: 26 kg / 29 kg

Specifications / Notes

• Two selectable sterilization programs: 121°C and 134°C, temperature accuracy ±0.1℃.
• Suitable for non-packaged solid instruments, glassware and bare metal tools.
• Complies with European Class N standards for tabletop autoclaves.
• Optional voltage configurations available on request.
