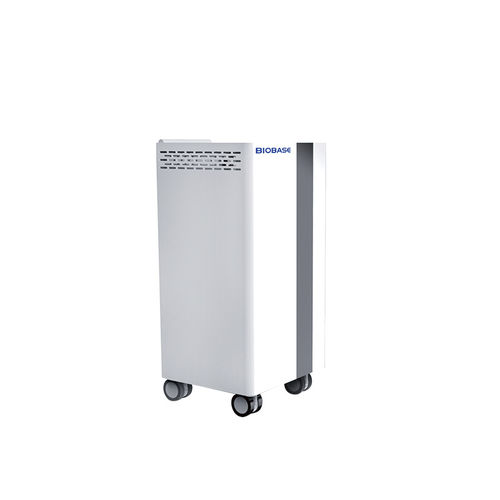

Mobile air purifier BK-Y series

UVUVCplasma

Overview
The BIOBASE mobile UV air sterilizer is designed for use in medical facilities, laboratories, clean production workshops and public spaces requiring disinfection. Models cover small to medium clinical and institutional rooms.

Key information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model(s): BK-Y-600, BK-Y-800, BK-Y-1000, BK-Y-1300, BKB-Y-800

Features

• Designed for occupied or unoccupied operation with selectable safety modes.
• Microcontroller timer with programmable switch segments (6 groups standard; 9 groups for BKB-Y-800) and three-step adjustable fan speed.
• Multiple operating modes: manual, timing, temporary (BKB-Y-800 adds automatic for four-mode operation).
• Integrated UV lamp, fan, negative-ion module and plasma module monitoring with fault and maintenance alerts (advanced alerts on BKB-Y-800).
• Infrared remote control and removable external filter for straightforward maintenance.
• Built-in high-concentration negative ion generator to support airborne particle removal.

Technical Parameters
Model: BK-Y-600 | BK-Y-800 | BK-Y-1000 | BK-Y-1300 | BKB-Y-800
Applicable Space: ≤60m³ | ≤80m³ | ≤100m³ | ≤130m³ | ≤80m³
Circulating Air: ≥600m³/h | ≥800m³/h | ≥1000m³/h | ≥1300m³/h | ≥800m³/h
Shell Material: ABS anti-UV (BK-Y series) | Metal shell (BKB-Y-800)
Filter: Captures dust particles >5μm (BK-Y series)
UV Lamp Life: ≥5000h
UV Leakage: ≤2μW/cm² | ≤3μW/cm² | ≤1μW/cm² (depends on model)
O₃ Leakage: ≤0.006–0.022mg/m³ (model dependent)
Negative Ion Generation: ≥5×10⁶ PCS/cm³ (all models)
Natural Bacteria Extinction Rate: ≥90% (all models)
Sterilization Rate (Staphylococcus albus): ≥99.9% (all models)
Noise: ≤55dB(A) (all models)
Power Consumption: ≤150–340W (model dependent)
Power Supply: AC220V 50/60Hz (standard); AC110V 50/60Hz (optional, BKB-Y-800 may require external transformer)
Dimensions (W*D*H): 540*410*900mm (BK-Y series) | 370*360*710mm (BKB-Y-800)
Net Weight: 19.1kg | 19.4kg | 21.5kg | 21.9kg | 21.5kg
Package Size (W*D*H): 574*481*975mm (BK-Y series) | 440*430*780mm (BKB-Y-800)
Gross Weight: 22.5kg | 22.7kg | 24.8kg | 24.8kg | 27.5kg

Characteristics / technical specifications

• Models: BK-Y-600, BK-Y-800, BK-Y-1000, BK-Y-1300, BKB-Y-800
• Applicable spaces: up to 130m³ depending on model
• Airflow (circulating): 600–1300m³/h depending on model
• Shell: ABS UV-resistant (BK-Y) or metal (BKB-Y-800)
• Filter rating: removes particles >5μm
• UV lamp life: ≥5000 hours; UV and O₃ emissions within stated limits
• Negative ion output: ≥5×10⁶ PCS/cm³
• Bacterial reduction: natural extinction ≥90%; Staphylococcus albus sterilization ≥99.9%
• Noise level ≤55dB(A); power consumption per model as listed
• Power supply: standard AC220V 50/60Hz, AC110V optional
• Refer to technical parameters for per-model dimensions and weights
