Sterilization service sterilizer BKQ-H series

CSSDhospitalsaturated steam

Product Overview

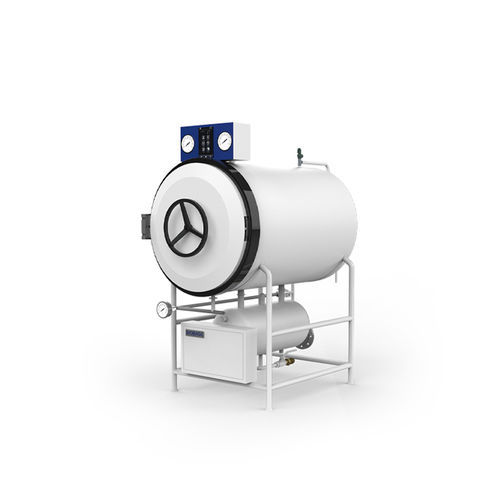

Brand: BIOBASE. Product origin: CHINA. Delivery time: Within 7 days. Supply capacity: Factory direct supply. Models: BKQ-H150, BKQ-H200, BKQ-H300, BKQ-H400. The units are horizontal cylindrical pressure autoclaves using saturated steam for sterilization, with a single-door chamber and built-in steam generator.

Features

• LCD touch control: displays temperature, time, operating status and alarms in real time for clear monitoring.
• Auxiliary drying: configurable drying cycle to remove residual moisture after sterilization.
• Safety protection: automatic over-temperature and over-pressure protection devices.
• Built-in high-speed steam generator: eliminates need for external steam source.
• Automatic program operation: external water connection with automatic water injection; complete cycle from water fill to drying without operator intervention and audible end signal.
• Multiple preset programs for common loads and a DIY solid program for custom cycles.

Programs

• Wrapped
• Unwrapped
• Dressing
• Rubber
• Drying
• DIY Solid

Technical Parameters (table)
Model | BKQ-H150 | BKQ-H200 | BKQ-H300 | BKQ-H400
Capacity | 150L | 200L | 300L | 400L
Designed Pressure | 0.28MPa | 0.28MPa | 0.28MPa | 0.28MPa
Built-in Steam Generator | Yes | Yes | Yes | Yes
Rated Working Pressure | 0.12MPa / 0.23MPa | 0.12MPa / 0.23MPa | 0.12MPa / 0.23MPa | 0.12MPa / 0.23MPa
Rated Operating Temp. | 121℃ / 134℃ | 121℃ / 134℃ | 121℃ / 134℃ | 121℃ / 134℃
Ambient Temp. | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃
Adjustable Drying Temp. | 115~134℃ | 115~134℃ | 115~134℃ | 115~134℃
Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃
Sterilization Time Range | 1~99 min | 1~99 min | 1~99 min | 1~99 min
Drying Time Range | 1~99 min | 1~99 min | 1~99 min | 1~99 min
Vacuum System | No | No | No | No
Chamber Material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel
Chamber Size | Ф500*820mm | Ф500*1050mm | Φ650*935mm | Ф650*1235mm
Altitude | ≤2500m | ≤2500m | ≤2500m | ≤2500m
Standard Accessories | Net rack ×1, Net lid ×1 | Net rack ×1, Net lid ×1 | Net rack ×1, Net lid ×1 | Net rack ×1, Net lid ×1
Power Consumption | 10KW | 10KW | 15KW | 15KW
Power Supply | AC380V 50/60Hz; AC220V 50/60Hz (three phase); AC220V 50/60Hz (single phase — high current) | same | same | same
External Size (W*D*H) | 680*1270*1550mm | 680*1500*1550mm | 815*1550*1750mm | 815*1850*1750mm
Net Weight | 230kg | 250kg | 340kg | 385kg
Package Size (W*D*H) | 820*1500*1910mm | 820*1730*1910mm | 950*1750*2030mm | 950*2000*2030mm
Gross Weight | 320kg | 355kg | 475kg | 535kg

Specifications

• Model range: BKQ-H series (BKQ-H150, BKQ-H200, BKQ-H300, BKQ-H400).
• Capacities: 150 L / 200 L / 300 L / 400 L.
• Designed pressure: 0.28 MPa; rated working pressure options: 0.12 MPa or 0.23 MPa.
• Operating temperatures: 121℃ and 134℃; temperature accuracy 0.1℃.
• Built-in high-speed steam generator; vacuum system not included.
• Adjustable sterilization and drying times: 1–99 min; adjustable drying temperature 115–134℃.
• Chamber: 304 stainless steel. Standard accessories: net rack ×1, net lid ×1.
• Power options: AC380V or AC220V (three-phase) — ordering AC220V single-phase requires attention to high current.
