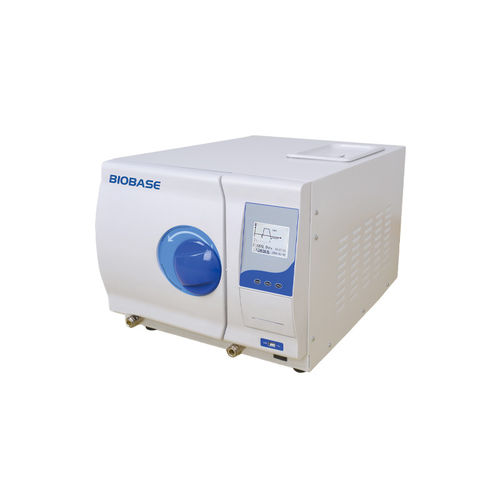

Medical autoclave BKMZA BKMZB

dentalbenchtopstainless steel

Overview
Table-top Autoclave Class B, models BKMZA / BKMZB by BIOBASE. Product origin: CHINA. Delivery time: within 7 days. Supply: factory direct. The unit is designed for sterilization of medical and surgical items in ophthalmology, dentistry, internal medicine clinics, emergency rooms and small laboratories. Suitable for packaged, hollow and porous items.

Key features

• Built-in open-type water tank (3.5 L) for easy cleaning and support of repeated cycles when fully filled.
• High-efficiency vacuum system (low-noise vacuum pump) providing efficient air removal and drying.
• Large 3.5-inch LCD (BKMZA/BKMZB) displaying temperature, pressure, time, status and fault warnings.
• Multiple sterilization programs: solid, packaged, fabric (dressing), enhanced; test programs include HELIX, B&D and vacuum test.
• Standard USB port (BKMZA/BKMZB) for sterilization data export to USB drive.
• Optional mini printer for process documentation.
• High-efficiency sterilizing air filter 0.22 μm, filtration ≥ 99.5% to ensure sterile air during vacuum-breaking and prevent re-contamination.
• Safety protections: automatic shutdown for over-temperature/over-pressure, anti-dry-burning, automatic pressure relief, over-current and leakage protection.
• Built-in waste water tank.

Technical parameters
Model: BKMZA | BKMZB
Capacity: 18 L | 23 L
Door: Manual
Display: 3.5-inch LCD
Designed pressure: -0.1 / 0.28 MPa
Working pressure: 0.23 MPa
Max designed temp.: 150℃
Working temp.: 121 / 134℃
Temperature precision: 0.1℃
Sterilization time: 0~60 min
Drying time: 0~20 min
Water tank capacity: 3.5 L (built-in, open type)
Vacuum system: High-efficiency vacuum pump
Chamber material: S30408 stainless steel
Chamber size: φ247×360 mm | φ247×470 mm
Altitude: ≤2700 m
Rack: 1 rack with 3 trays
Standard accessories: Aluminum tray, USB port
Optional accessories: Stainless steel tray, mini printer
Power consumption: 1.95 KW
Power supply: AC220V, 50/60Hz (standard); AC110V 50/60Hz (optional)
External size (W×D×H): 495×650×410 mm | 495×700×410 mm
Net weight: 50 kg | 55 kg
Package size (W×D×H): 610×810×590 mm
Gross weight: 63 kg | 67 kg

Applications

• Sterilization of medical and surgical instruments in ophthalmology, dentistry and internal medicine clinics.
• Suitable for packaged, hollow and porous items; use in emergency rooms and small laboratories.

Accessories & options

• Standard: aluminum tray, USB data export.
• Optional: stainless steel tray, mini printer. Power option: AC110V available on request.
