Laboratory sterilizer BKQ-Z50E

hospitalfor the food industrysteam

Overview

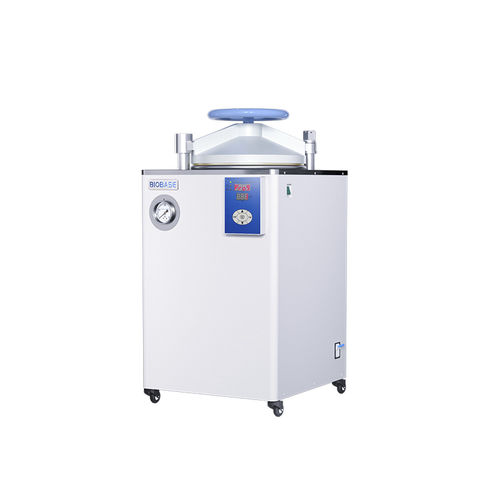

Vertical autoclave with 50 L chamber capacity, available in two models (BKQ-Z50E and BKQ-B50E). Designed for routine sterilization of instruments, supplies and medical waste in clinical and laboratory environments. Uses gravity displacement to purge cold air and achieve validated sterilization cycles.

Brand
BIOBASE

Applications
Intended for hospitals, clinics, laboratories, inspection departments and food-processing facilities for sterilizing solid surgical instruments, rubber goods, dressings and cotton masks, packaged or unpackaged.

Key features

• 50 L sterilization chamber made of S30408 stainless steel with electrolytic polishing.
• LED digital display for real-time indication of operating status, chamber temperature and alarm codes.
• Multiple preset and customizable programs for solids, packaged instruments, rubber, textiles and liquids.
• Safety protections including automatic over-temperature, over-pressure and over-current protection.
• Insulated pot wall, low noise operation (≤65 dB) and suitability up to 2700 m altitude.

Programs

• BKQ-Z50E: solid bare instrument 126℃; packaged instrument 126℃; rubber 121℃; fabric 126℃; liquid 121℃; custom program 1 (105–126℃); custom program 2 (105–126℃).
• BKQ-B50E: solid bare instrument 134℃; packaged instrument 134℃; rubber 121℃; fabric 134℃; liquid 121℃; custom program 1 (105–136℃); custom program 2 (105–136℃).

Technical parameters
Model: BKQ-Z50E | BKQ-B50E
Capacity: 50 L
Designed pressure: 0.2 MPa | 0.28 MPa
Working pressure: 0.16 MPa | 0.23 MPa
Designed temperature: 126℃ | 121/134℃
Temperature precision: 0.1℃
Chamber material: S30408 stainless steel
Chamber size: φ319×610 mm | φ316×640 mm
Basket / bucket: φ300×250 mm, 2 pcs
Noise: ≤65 dB
Altitude: ≤2700 m
Power consumption: 3.1 kW
Power supply: AC220V, 50/60Hz (standard); AC110V optional
External dimensions (W×D×H): 525×475×890 mm | 525×475×960 mm
Net weight: 49 kg | 61 kg
Package size (W×D×H): 635×550×1020 mm | 635×550×1090 mm
Gross weight: 60 kg | 72 kg

Standard and optional accessories

• Standard: mesh bottom basket (2 pcs).
• Optional: printer, bucket, tray.
