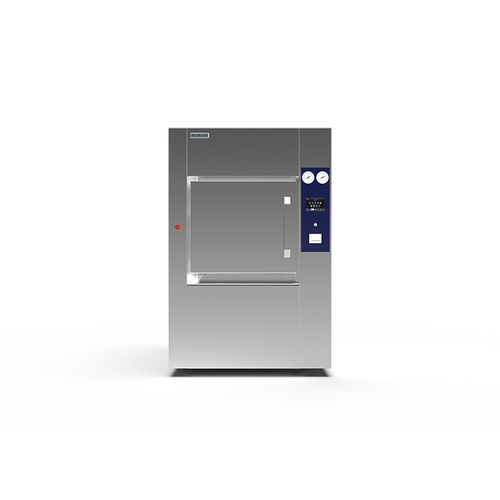

Medical sterilizer BKQ-Z450H

for sterilization servicesCSSDhospital

Introduction
The large horizontal steam autoclave performs repeated vacuum extraction and steam injection into the sterilization chamber to achieve the required vacuum level, then injects saturated steam to reach set pressure and temperature for effective sterilization of instruments, textiles and other loads.

Features

• Motorized double-door with inflatable sealing ring for reliable sealing and safe double-door transfer.
• Standard thermal printer for storage and recording of sterilization cycles and traceability.
• Rectangular annular reinforcing rib structure for low residual stress and high bearing capacity under pulsating pressure and temperature loads, extending vessel service life.
• Programmable PLC with 7.0-inch color touch screen: automatic program control with simultaneous display of jacket pressure, chamber temperature, chamber pressure, operating status and fault alarms.
• Intelligent drying system: residual moisture after drying of equipment ≤ 0.2%; residual moisture after drying of dressing ≤ 1%.
• High-efficiency sterilizing air filter to maintain sterile cavity air and prevent re-contamination.
• Connection to external water source for unattended operation from water injection to drying; voice prompt on cycle completion.
• Independent steam inlet to the inner chamber to avoid jacket contamination and preserve drying performance.
• Double-door channel type with three-layer safety interlock (pressure, mechanical and electronic); over-temperature and over-pressure protection.
• Multiple programs: textiles, instruments, rubber, solids, advanced cycles; auxiliary drying and water-adding programs; BD, leak and PCD test programs; liquid program optional.
• Shell made of 304 stainless steel for easy cleaning.

Technical Parameters
Model: BKQ-Z450H | BKQ-Z650H
Capacity: 450 L | 650 L
Door: Automatic (motorized double-door)
Display: 7-inch LCD touch screen (PLC)
Designed Pressure: Inner chamber -0.1/0.3 MPa; Jacket 0.3 MPa
Working Pressure: 0.21 MPa
Designed Temp.: 150℃
Max Working Temp.: 134℃
Temp. Precision: 0.1℃
Built-in Steam Generator: 0.8 MPa
Sterilization Time: 1–99 min
Drying Time: 1–99 min
Vacuum system: Water circulating vacuum pump
Chamber material: S30408 (304 stainless steel)
Chamber size (W*D*H): 672*1000*672 mm | 672*1500*672 mm
Altitude: ≤2000 m
Trolley: 2 external sterilization trolleys, 1 internal trolley
Standard accessories: Trolleys, printer
Optional accessories: Sheet metal side cover, air compressor, liquid program
Power consumption: 35 kVA | 56 kVA
Power supply: AC380V, 50Hz (standard); AC380V, 60Hz (optional); AC220V 50/60Hz three-phase (optional); Wiring method: Air switch
External size (L*W*H): 1260*1314*2050 mm | 1760*1314*1970 mm
Net weight: 1035 kg | 1200 kg
Package size: Main instrument / Trolleys: see model variants above
Gross weight: Main instrument: 1220 kg / 1440 kg; Trolleys: 150 kg / 170 kg

Specifications

• Brand: BIOBASE
• Model: BKQ-Z450H; BKQ-Z650H
• Capacities: 450 L and 650 L
• Door: Motorized double-door, automatic
• Display: 7-inch color touch screen (PLC control)
• Working pressure / steam generator: 0.21 MPa / 0.8 MPa
• Temperature range and precision: up to 134℃ (designed 150℃), precision 0.1℃
• Vacuum system: Water circulating vacuum pump
• Chamber material: S30408 (304 stainless steel)
• Standard accessories: Trolleys, printer; optional: side cover, air compressor, liquid program
• Power consumption: 35 kVA (450 L); 56 kVA (650 L)
• Power supply options: AC380V 50Hz standard, other options available
• Dimensions and weights: refer to Technical Parameters section above
