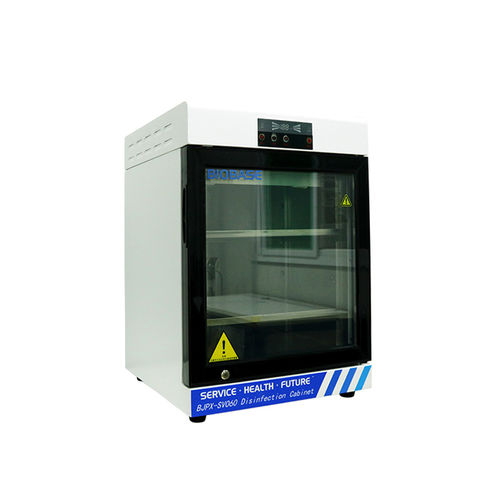

Universal sterilizer BJPX-SVO60

for sterilization servicesindustrialhome care

Introduction
The ozone UV sterilization cabinet uses combined ozone generation and UV irradiation to sterilize items that cannot withstand high temperatures. Two models are available (BJPX-SVO60 and BJPX-SVO80) for small- to medium-volume sterile processing.

Items that can be sterilized

• Enamelled glass cups and glassware
• Plastics and polymer components
• Ceramics
• Machines, equipment parts and production supplies
• Banknotes and currency
• Non-woven fabrics and composite paper
• Packaging boxes and bags
• Household and cleaning appliances
• Molds and tooling
• Tableware and containers
• Towels, workwear and clothing
• Shoes, packaging materials and raw materials

Applications
Suitable for banks, hotels, restaurants, schools, production workshops with hygiene requirements, public spaces that require sterilization and residential rooms.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: BJPX-SVO60 / BJPX-SVO80

Key features

• Sterilization method: Combined ozone generation and UV lamp for broader microbial coverage and 360° treatment.
• Control system: PID control with fully automatic operation, adjustable sterilization time and automatic shutdown after cycle.
• Construction: Work zone in stainless steel (201, 1.0 mm); main body in coated cold-rolled steel.
• Operational safety: Ozone concentration and leakage controls (620 mg/m3 nominal; leakage ≤0.1 mg/m3) and low operational noise.
• Adjustable storage: Removable/adjustable shelves (standard 2) to accommodate different items.

Technical parameters
Model: BJPX-SVO60 / BJPX-SVO80
Capacity: 70 L / 90 L
Sterilization method: Ozone + UV lamp
Ozone concentration: 620 mg/m3
Ozone leakage: ≤0.1 mg/m3
Indicator bacteria: Staphylococcus aureus, Candida albicans, Pseudomonas aeruginosa, natural bacteria
Performance index: Log-kill value points ＞ 3.00
Control system: PID (fully automatic)
Working conditions: Ambient temperature 5–40℃; relative humidity ≤85%; atmospheric pressure 70–106 kPa; no flammable/corrosive gases or conductive dust nearby
Material: Work zone stainless steel 201 (1.0 mm); main body coated cold-rolled steel
Altitude: <2000 m
Shelf (W×L): BJPX-SVO60: 386×394 mm (standard 2, optional); BJPX-SVO80: 478×394 mm (standard 2, optional)
Standard accessories: 2 shelves, 1 UV lamp
Power consumption: 8 W
Power supply: AC 220V 50/60Hz standard (AC 110V optional with external transformer)
Internal size (W×D×H): 398×398×452 mm / 398×498×452 mm
External size (W×D×H): 495×501×760 mm / 495×601×760 mm
Net weight: 35 kg / 40 kg
Package size (W×D×H): 620×620×860 mm / 726×620×860 mm
Gross weight: 50 kg / 55 kg

Characteristics / specifications

• Models: BJPX-SVO60, BJPX-SVO80 (BJPX-SVO series)
• Capacities: 70 L (SVO60) and 90 L (SVO80)
• Sterilization: Ozone combined with UV lamp, 360° coverage
• Ozone output: 620 mg/m3; leakage ≤0.1 mg/m3
• Control: PID with timer and auto-stop
• Materials: Stainless steel work chamber, coated steel exterior
• Standard accessories: 2 shelves and 1 UV lamp; power 220V standard (110V optional)
