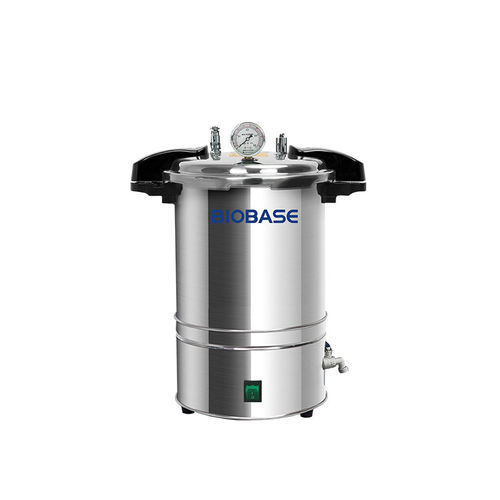

Production environment medical sterilizer BKM-P series

laboratorysurgerydental

Overview / Applications
Portable autoclave suitable for sterilizing surgical and dental instruments, glassware, culture media, biological dressings, food and goods. Designed for clinical, laboratory and small-scale production environments.

Brand & Origin
Brand: BIOBASE
Origin: CHINA
Lead time: within 7 days
Supply capacity: direct from factory

Models

• BKM-P18I
• BKM-P18II
• BKM-P18III
• BKM-P24I
• BKM-P24II
• BKM-P24III

Features

• Self-expanding sealing ring for effective steam sealing.
• Automatic over-temperature and over-pressure protection.
• Immersion electric heating tube with high thermal efficiency, stainless steel construction.
• Water level indicator and low-water automatic cutoff (anti-dry protection).
• Heating options: electric or liquefied petroleum gas for dual-use models.
• Self-adjustment: temperature and time adjustable; automatic stop and alarm after sterilization on timing-control models.
• Two safety valves on timing-control types for redundant safety.

Technical parameters (key items)
Models: BKM-P18I | BKM-P18II | BKM-P18III | BKM-P24I | BKM-P24II | BKM-P24III
Type: Dual-use / Anti-dry / Timing control (varies by model)
Capacity: 18 L / 24 L
Max working pressure: 0.165 MPa
Rated working pressure: 0.14 MPa
Max working temperature: 129℃; Rated working temperature: 126℃
Temperature setting: Fixed 126℃ or adjustable 105–127℃ (timing-control models)
Heating method: Electric (some models dual-use with coal/LPG)
Sterilizing time: Manual timing or 0–99 min (model dependent)
Chamber sizes (examples): Ф300×320 mm; Ф280×350 mm; Ф300×450 mm; Ф280×460 mm
Altitude: < 2600 m
Disinfection tank sizes (examples): Φ280×240 mm; Φ265×265 mm; Φ280×350 mm; Φ265×375 mm
Automatic control: Yes or No (depends on model)
Low water cutoff: Anti-dry heating tube or water level switch (model dependent)
Consumption: typically 2 kW (1.5 kW customizable)
Power supply: AC220V 50/60Hz standard; AC110V optional
External dimensions, weights and package sizes vary by model (see model-specific data)

Characteristics / Specifications (summary)

• Series: BKM-P (models P18 / P24)
• Capacities: 18 L and 24 L
• Rated temp: 126℃; Max temp: 129℃
• Rated pressure: 0.14 MPa; Max pressure: 0.165 MPa
• Power: AC220V standard (AC110V optional); typical consumption 2 kW
• Control modes: manual timing, anti-dry protection, timing control with alarm (depending on model)
