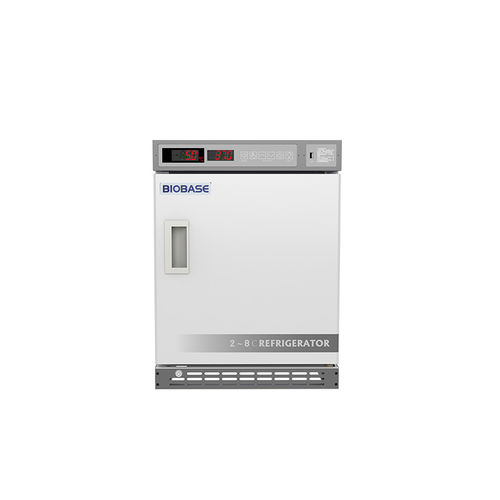

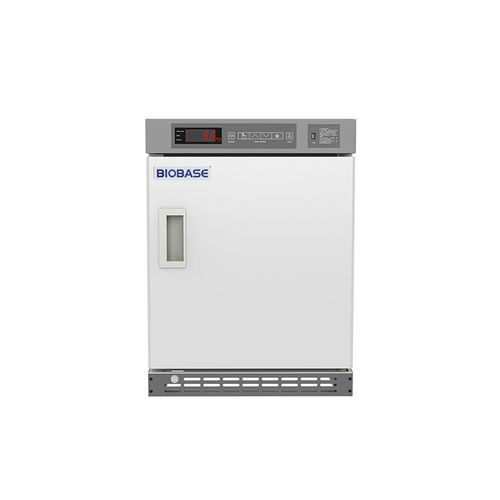

Laboratory refrigerator BPR-5V series

for clinical laboratoriesuprighton casters

Product brief
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BPR-5V68F, BPR-5V108F, BPR-5V288F, BPR-5V358F, BPR-5V468F

Introduction
This laboratory refrigerator provides precise temperature control in the 2–8°C range to preserve biological samples and reagents. Designed for laboratory and clinical use, it combines temperature uniformity and stability with multiple alarms and automatic defrost to protect sensitive contents.

Technical summary
Model: BPR-5V68F / BPR-5V108F / BPR-5V288F / BPR-5V358F / BPR-5V468F
Capacity: 68 L / 108 L / 288 L / 358 L / 468 L
Temperature range: 2–8°C
Temperature accuracy: 0.1°C
Temperature uniformity: ≤2°C
Temperature stability: ≤3°C
Recovery time (to 8°C at ambient 32°C): ≤15 min
Cooling time (to 6°C at ambient 32°C): ≤55 min | ≤110 min | ≤60 min | ≤60 min | ≤70 min
Control system: Microprocessor control with LED display
Alarms: High/low temperature, thermostat fault, door switch, power failure (8 h)
Refrigeration: Air-cooled; refrigerant varies by model (R600a or R290 variants)
Compressor: International brand compressor (1 unit)
Defrost: Automatic
Construction: Polyurethane (cyclopentane) insulation; sprayed steel interior and exterior
Door: Cyclopentane integral foam door x1
Power consumption: 95 W (smaller models) / 220 W (larger models)
Power supply: AC220V 50Hz standard; 110/220V 60Hz optional
Shelves: 2 / 3 / 4 / 5 (model dependent)
Standard accessory: Test hole, USB interface
Optional accessory: RS485, printer, temperature recorder

Dimensions & weight
Internal size (W*D*H): 415*405*455 mm | 415*405*706 mm | 530*520*1096 mm | 530*520*1325 mm | 580*613*1325 mm
External size (W*D*H): 495*572*683 mm | 495*572*934 mm | 630*660*1658 mm | 630*660*1886 mm | 680*747*1886 mm
Package size (W*D*H): 620*700*860 mm | 630*700*1110 mm | 770*800*1830 mm | 770*800*2060 mm | 830*880*2050 mm
Net weight / Gross weight: 41 kg / 52 kg | 49 kg / 61 kg | 101 kg / 118 kg | 111 kg / 131 kg | 123 kg / 146 kg

Accessories & options
Standard: test hole, USB interface. Optional: RS485 communication, printer, temperature recorder. Casters available on larger models for mobility.

Notes
Multiple capacities and configurations available to meet laboratory sample storage requirements. Select refrigerant and power options according to local regulations and site conditions.

Key features / specifications

• Operational range 2–8°C with 0.1°C accuracy
• Microprocessor control with LED display and multiple alarms
• Automatic defrost and fast recovery performance (≤15 min specified)
• Air-cooled refrigeration with low-GWP refrigerant options
• Polyurethane cyclopentane insulation and sprayed steel construction
• Standard USB interface for data export; optional RS485/printer/recorder
• Available in five capacities: 68 L, 108 L, 288 L, 358 L, 468 L
