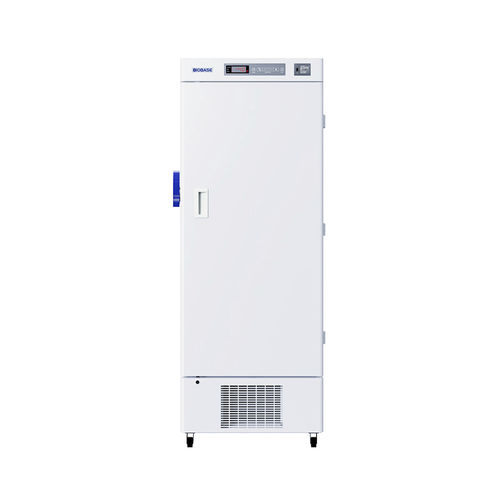

Vaccine freezer BDF-40V series

for blood plasmalaboratoryfor sample storage

Product Overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BDF-40V362; BDF-40V398; BDF-40V450


Introduction
The -40℃ temperature range is designed for medical and laboratory storage of temperature-sensitive items such as vaccines, blood products, pharmaceuticals and biological samples. The unit provides a stable low-temperature environment with monitoring and alarm functions to protect product integrity and support traceability.


Technical Parameters
Model: BDF-40V362 | BDF-40V398 | BDF-40V450
Capacity: 362L | 408L | 450L
Temperature range: -15 ~ -40℃
Temperature accuracy: 0.1℃
Temperature uniformity / stability: ≤4℃
Recovery time (recover to -37℃ at ambient 25℃): ≤30min | 40min | ≤30min
Cooling time (cool to -40℃ at ambient 25℃): ≤4h | 50min | ≤4h
Control system: Microprocessor control
Display: LED display
Alarms: High/low temperature, thermostat fault, door switch, power failure (8h)
Refrigeration type: Direct-cooling
Refrigerant: BDF-40V362: R290/86g; BDF-40V398: R404A/R23/390g; BDF-40V450: R290/115g
Compressor: International brand compressor (1)
Condenser & evaporator: Wire-on-tube Bundy condenser / finned copper tube condenser (model dependent); built-in coil copper tube evaporator
Defrost: Manual
Construction: Polyurethane cyclopentane foam insulation
Internal material: 304 stainless steel
External material: Sprayed steel plate
Door: Outer door with cyclopentane integral foam; inner door varies by model (cold plate spray door or 304 stainless steel door)
Power consumption: 278W | 700W | 510W
Power supply: AC220V, 50Hz (standard); 110/220V, 60Hz (optional)
Casters: Yes
Shelves: 4 | 3 | 4
Standard accessory: Test hole; USB interface
Optional accessory: RS485 interface; printer
Internal size (W*D*H): 520*567*1266mm | 610*615*1120mm | 522*683*1266mm
External size (W*D*H): 690*744*1885mm | 850*900*1780mm | 750*905*1885mm
Package size (W*D*H): 840*860*2050mm | 980*980*1930mm | 855*1000*2080mm
Net weight: 130kg | 188kg | 147kg
Gross weight: 155kg | 238kg | 180kg


Key features / specifications

• Model series: BDF-40V362 / BDF-40V398 / BDF-40V450
• Operating temperature range: -15℃ to -40℃; minimum -40℃
• Temperature control accuracy: 0.1℃; uniformity/stability ≤4℃
• Microprocessor control with LED display and multiple alarm functions
• Direct-cooling refrigeration with model-specific refrigerants (R290, R404A/R23)
• Inner material 304 stainless steel; cyclopentane polyurethane insulation
• Standard test port and USB data interface; RS485 and printer optional
• Mobility via casters; adjustable shelving (quantity by model)
• Dimensions, power consumption and weights vary by model (see technical parameters)
