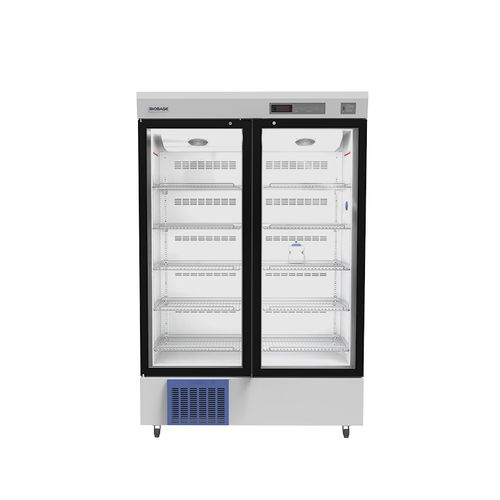

Laboratory refrigerator BPR-5V series

uprighton casters2 doors

Introduction
The laboratory refrigerator is designed for storage of reagents, culture media, proteins and other biomedical samples in research, clinical and industrial laboratories. It provides controlled 2–8°C storage across multiple capacities and models.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model(s): BPR-5V628, BPR-5V650, BPR-5V968

Technical Parameters (table)
Model: BPR-5V628 | BPR-5V650 | BPR-5V968
Capacity: 628 L | 650 L | 968 L
Temp. Range: 2~8℃ | 2~8℃ | 2~8℃
Temp. Accuracy: 0.1℃ | 0.1℃ | 0.1℃
Temp. Uniformity: ≤2℃ | ≤2℃ | ≤2℃
Temp. Stability: ≤3℃ | ≤3℃ | ≤3℃
Recovery Time (recover to 8℃ at ambient 32℃): ≤15 min | ≤15 min | ≤15 min
Cooling Time (cool to 6℃ at ambient 32℃): ≤100 min | ≤75 min | ≤100 min
Control System: Microprocessor control
Display: LED
Alarm: High/low temperature alarm; thermostat fault alarm; door switch alarm; power failure alarm (8 h)
Refrigeration Type: Air-cooling
Refrigerant: R290 / 150 g (all models)
Compressor: International-brand compressor (1)
Condenser & Evaporator: Copper tube with aluminum fins
Defrost: Automatic defrost
Construction / Insulation: Polyurethane (cyclopentane) insulation
Internal / External Material: Sprayed steel plate
Door: Electrically heated double glass doors (×2)
Power Consumption: 300 W
Power Supply: AC220V, 50Hz (standard); 110/220V, 60Hz (optional)
Casters: Yes
Shelves: 10
Standard Accessory: Test hole; USB interface
Optional Accessory: RS485; printer; temperature recorder
Internal Size (W*D*H): 1100*454*1325 mm | 1100*479*1325 mm | 1100*684*1325 mm
External Size (W*D*H): 1220*630*1885 mm | 1220*630*1885 mm | 1220*860*1885 mm
Package Size (W*D*H): 1340*750*2100 mm | 1340*750*2100 mm | 1340*980*2100 mm
Net Weight: 189 kg | 212 kg | (not specified)
Gross Weight: 223 kg | 256 kg | (not specified)

Features / Technical specifications

• Microprocessor temperature control with LED display; 0.1℃ accuracy
• Multiple alarms: high/low temperature, thermostat fault, door switch, power failure (8 h)
• Air-cooling system using R290 (150 g) refrigerant and international-brand compressor
• Automatic defrost; sprayed steel plate interior/exterior; polyurethane (cyclopentane) insulation
• Electrically heated double glass doors to prevent condensation
• Standard test hole and USB interface; optional RS485, printer, temperature recorder
• Mobility via casters and up to 10 adjustable shelves
• Available capacities across three models to match storage needs
• Standard power AC220V 50Hz; optional 110/220V 60Hz

Notes
Custom voltage and optional accessories available on request; third-model weight values not specified in manufacturer data.
