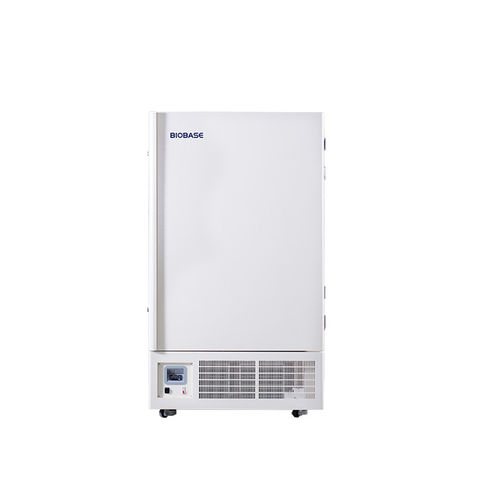

Laboratory freezer BDF-60V SERIES
for sample storagecabinetupright

Laboratory freezer - BDF-60V SERIES - Biobase - for sample storage / cabinet / upright
Laboratory freezer - BDF-60V SERIES - Biobase - for sample storage / cabinet / upright
Laboratory freezer - BDF-60V SERIES - Biobase - for sample storage / cabinet / upright - image - 2
Laboratory freezer - BDF-60V SERIES - Biobase - for sample storage / cabinet / upright - image - 3
Add to favorites
Compare this product
Go to the Biobase website for more information

Characteristics

Applications
laboratory, for sample storage
Configuration
cabinet, upright, on casters
Number of doors
1-door
Cooling system
with direct cooling, with dual cooling system
Defrost mode
manual defrost
Power source
electric
Other characteristics
stainless steel, with independent circuits, ultra-low-temperature
Capacity

Min.: 608 l
(160.62 gal)

Max.: 938 l
(247.79 gal)

Temperature range

Min.: -60 °C
(-76 °F)

Max.: -25 °C
(-13 °F)

Width

Min.: 99 cm
(39 in)

Max.: 128 cm
(50.4 in)

Depth

Min.: 101 cm
(39.8 in)

Max.: 103 cm
(40.6 in)

Height

Min.: 186 cm
(73.2 in)

Max.: 200 cm
(78.7 in)

Weight

Min.: 245 kg
(540.1 lb)

Max.: 320 kg
(705.5 lb)

Description

Overview
Suitable for ultra-low temperature applications in research laboratories, biotechnology, special materials, electronics and chemical industries, university experiments and offshore fishing. Designed for controlled storage and experimental use down to -60°C.

Key information
  • Brand: BIOBASE
  • Product origin: CHINA
  • Delivery time: Within 7 days
  • Supply capacity: Factory direct supply
  • Models: BDF-60V608, BDF-60V708, BDF-60V808, BDF-60V938


Technical parameters
Model: BDF-60V608 | BDF-60V708 | BDF-60V808 | BDF-60V938
Capacity: 608L | 708L | 808L | 938L
Temperature range: -25 ~ -60°C
Temperature accuracy: 0.1°C
Temperature uniformity / stability: ±4°C
Control system: Microprocessor control
Display: LED display
Alarm: High/low temperature alarm, thermostat fault alarm
Refrigeration type: Direct-cooling (dual independent refrigeration system, 2 compressors)
Refrigerant: BDF-60V608: R404A/R23 480g; BDF-60V708: R404A/R23 520g; BDF-60V808: R404A/R23 580g; BDF-60V938: R404A/R23 610g
Compressor: International brand compressors (dual independent system)
Condenser & evaporator: Copper tube aluminium fin condenser; cabinet-wrapped copper tube evaporator
Defrost: Manual defrost
Insulation: Polyurethane cyclopentane foam
Internal material: 304 stainless steel
External material: Sprayed steel plate
Doors: 1 outer sprayed steel door + 4 internal 304 stainless steel doors
Power consumption: 900W | 1050W | 1100W | 1100W
Power supply: AC220V, 50Hz (standard); 110/220V, 60Hz (optional)
Mobility: Casters included
Shelves: 3
Standard accessory: Test hole
Optional accessory: Temperature recorder
Internal size (W*D*H): 750*715*1200mm | 890*715*1200mm | 850*725*1335mm | 1040*715*1320mm
External size (W*D*H): 990*1030*1860mm | 1130*1030*1860mm | 1090*1010*2000mm | 1280*1030*1980mm
Package size (W*D*H): 1120*1080*2010mm | 1280*1080*2150mm | 1280*1080*2150mm | 1410*1080*2130mm
Net weight: 245kg | 285kg | 300kg | 320kg
Gross weight: 288kg | 345kg | 370kg | 405kg

Features / technical specifications
  • Operation range: -25°C to -60°C suitable for ultra-low-temperature storage and experiments
  • Precise temperature control: 0.1°C accuracy with LED display and microprocessor control
  • Safety alarms: high/low temperature and thermostat fault alarms
  • Reliable cooling: direct-cooling with dual independent compressors for stable low-temperature maintenance
  • Robust construction: internal 304 stainless steel, sprayed steel exterior, polyurethane cyclopentane insulation
  • Model variants: multiple capacities (608L / 708L / 808L / 938L) to suit laboratory and industrial needs
  • Accessories: standard test hole; optional temperature recorder; caster mobility and 3 shelves included
