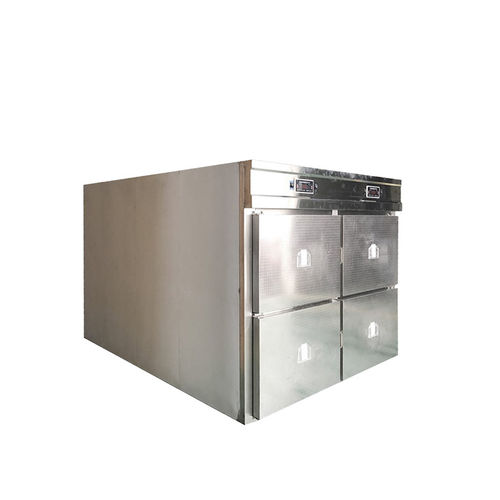

4-body mortuary cabinet BK-XG seriesfront-loadingrefrigerated
Add to favorites
Compare this product
Characteristics
- Number of bodies
- 4-body
- Loading
- front-loading
- Other characteristics
- refrigerated
Description
Product overview
Mortuary refrigerator for storage and short-to-medium term preservation of human remains. Available in the BK-XG series (BK-XG1, BK-XG2, BK-XG3, BK-XG4, BK-XG6). Designed with all-stainless-steel internal construction, individual chamber control and operating range to -30°C with 0.1°C accuracy.
Key features
Technical parameters
Model: BK-XG1 | BK-XG2 | BK-XG3 | BK-XG4 | BK-XG6
Interior size: BK-XG1: 2060*600*420 mm (1 tray); BK-XG2: 2060*640*440 mm (2 trays); BK-XG3: 2060*640*440 mm (3 trays); BK-XG4: 2050*640*440 mm (4 trays); BK-XG6: 2050*640*440 mm (6 trays)
Lowest temperature: -30°C
Temperature accuracy: 0.1°C
Power supply: Standard 220V 50/60Hz; optional 110V 60Hz
Power consumption: BK-XG1 850W; BK-XG2 850W; BK-XG3 1300W; BK-XG4 1300W; BK-XG6 1500W
Packing size (by model) and gross weight (by model): BK-XG1: 2700*800*700 mm / 200 kg; BK-XG2: 2300*950*1700 mm / 400 kg; BK-XG3: 2300*960*2200 mm / 500 kg; BK-XG4: 2300*1800*1700 mm / 700 kg; BK-XG6: 2300*2100*1700 mm / 840 kg
Applications
Ordering & supply
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Optional configurations: voltage selection (220V/110V) and model selection according to required capacity
Mortuary refrigerator for storage and short-to-medium term preservation of human remains. Available in the BK-XG series (BK-XG1, BK-XG2, BK-XG3, BK-XG4, BK-XG6). Designed with all-stainless-steel internal construction, individual chamber control and operating range to -30°C with 0.1°C accuracy.
Key features
- Anti-vibration and anti-overturn compressor
- Intelligent digital control system with 0.1°C accuracy
- All stainless-steel internal construction (stretcher and chamber)
- Polyurethane full-panel high-pressure, high-temperature foaming insulation (~100 mm)
- Individual refrigeration control for each chamber
- Movable corpse trays mounted on small roller wheels for easy handling
- Direct-cooled evaporator with built-in copper coil (no internal solder joints)
- Air-cooled condenser with silent cooling fan
- Enlarged load-bearing slide/frame (100 mm thickness)
Technical parameters
Model: BK-XG1 | BK-XG2 | BK-XG3 | BK-XG4 | BK-XG6
Interior size: BK-XG1: 2060*600*420 mm (1 tray); BK-XG2: 2060*640*440 mm (2 trays); BK-XG3: 2060*640*440 mm (3 trays); BK-XG4: 2050*640*440 mm (4 trays); BK-XG6: 2050*640*440 mm (6 trays)
Lowest temperature: -30°C
Temperature accuracy: 0.1°C
Power supply: Standard 220V 50/60Hz; optional 110V 60Hz
Power consumption: BK-XG1 850W; BK-XG2 850W; BK-XG3 1300W; BK-XG4 1300W; BK-XG6 1500W
Packing size (by model) and gross weight (by model): BK-XG1: 2700*800*700 mm / 200 kg; BK-XG2: 2300*950*1700 mm / 400 kg; BK-XG3: 2300*960*2200 mm / 500 kg; BK-XG4: 2300*1800*1700 mm / 700 kg; BK-XG6: 2300*2100*1700 mm / 840 kg
Applications
- Mortuaries and funeral homes
- Hospital pathology and post-mortem departments
- Forensic and medico-legal institutes
- Disaster victim management and temporary body storage
Ordering & supply
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Optional configurations: voltage selection (220V/110V) and model selection according to required capacity
