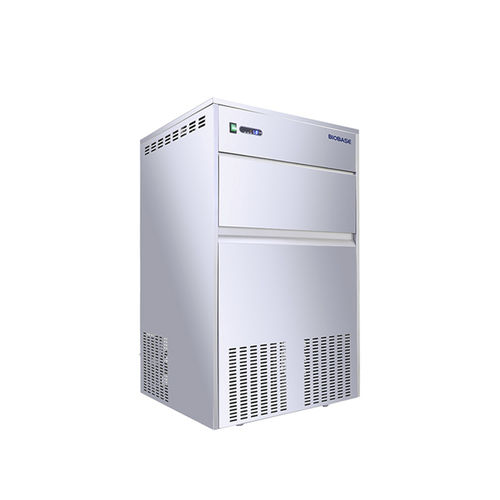

Flake ice maker FIM series

snow

Product overview
Brand: BIOBASE
Flake ice maker series FIM — range of models FIM20 to FIM250 for continuous flake ice production. Air-cooled units with stainless steel tank and configurable power supply options.

Models & capacity
Model range: FIM20, FIM30, FIM40, FIM50, FIM60, FIM70, FIM85, FIM100, FIM120, FIM150, FIM200, FIM250

• Ice production: 20–250 kg/24h (model-dependent)
• Max. storage capacity: approx. 10–60 kg (depends on model)

Technical parameters

• Ice type: small-particle irregular flake (snow-like)
• Cooling method: air-cooled condenser
• Tank/shell material: stainless steel
• Compressors: Donper or Panasonic Wanbao (model-dependent)
• Refrigerant: R290 (charge varies by model)
• Power consumption examples: 280W–1100W (varies by model)
• Power supply: AC220V 50/60Hz standard; 110V 60Hz optional
• Operating ambient temperature: 10–35°C; water temperature: 2–15°C
• Typical external sizes & weights: multiple dimensions and weights per model (see datasheet)

Accessories

• Standard: water inlet pipe ×1, drainage pipe ×1, ice spoon ×1
• Optional: water filter

Applications

• Laboratories and research facilities
• Hospitals and medical applications
• Supermarkets, hotels and seafood/food processing retailers
• Industrial cold chain and production lines requiring flake ice

Documentation
Product PDF brochure and technical datasheet available on request.
