Vaccine freezer BDF-150H128

for hospitalsfor laboratoryfor biobanks

Overview

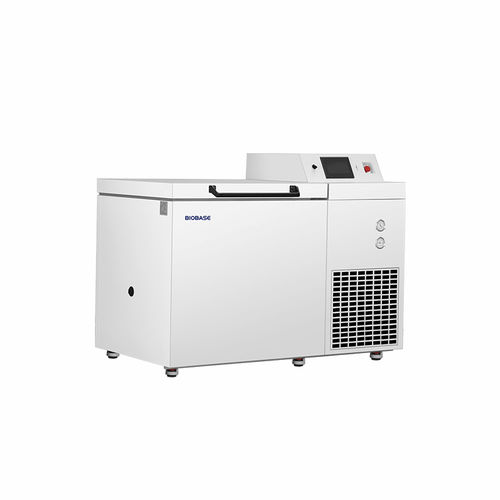

The BDF-150H128 ultra-low temperature freezer (BIOBASE) is designed for secure storage of temperature-sensitive biological samples, reagents and vaccines, offering a working range down to -150 ℃ with 128 L usable volume.

Product information

• Brand: BIOBASE
• Model: BDF-150H128
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply

Technical parameters

• Capacity: 128 L
• Temperature range: -40 to -150 ℃
• Temperature accuracy: 0.1 °C
• Temperature uniformity: ≤5 ℃
• Temperature stability: ≤6 ℃
• Control system: Microprocessor control
• Display: 7-inch LCD touch screen
• Alarms: high/low temperature, power abnormal, sensor fault, filter check, ambient temperature, condenser fault
• Refrigeration type: Direct-cooling
• Refrigerant: R4001, 2000 g
• Compressor: French origin (1 unit)
• Condenser & evaporator: Copper tube finned condenser; copper tube coil evaporator
• Defrost: Manual
• Insulation: High-density polyurethane foam, CFC free
• Internal material: 304 stainless steel
• External material: Sprayed steel plate
• Door construction: Outer sprayed steel plate door ×1; inner XPS extruded polystyrene foam door ×1
• Power consumption: 3125 W
• Power supply: AC220V 50/60Hz (standard); 110V 50/60Hz (optional)
• Mobility: Casters included

Standard accessories

• USB interface
• Remote alarm terminal
• Manometer
• Test port

Optional accessories

• Temperature recorder
• Liquid nitrogen backup system

Dimensions & weight

• Internal size (W×D×H): 500 × 450 × 578 mm
• External size (W×D×H): 1560 × 957 × 1178 mm
• Package size (W×D×H): 1637 × 970 × 1383 mm
• Net weight: 245 kg
• Gross weight: 340 kg

Applications

• Biobanks, hospital laboratories, research centres, pharmaceutical storage, vaccine and reagent preservation where controlled ultra-low temperatures are required
