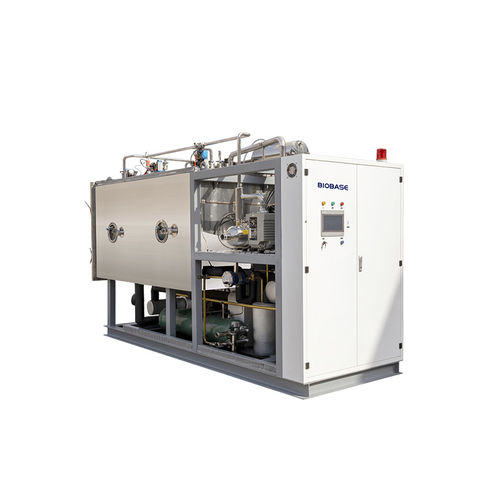

Freeze dryer for the pharmaceutical industry BK-PFD series

laboratoryfor productionfloor-standing

Introduction
Designed for pharmaceutical and biotech production and configured to meet GMP requirements, the BK-PFD series freeze dryers integrate the freeze-drying chamber, shelves, cold trap, refrigeration, vacuum, circulation, hydraulic and pneumatic systems, control platform, and optional CIP/SIP. Components operate together to deliver controlled, repeatable lyophilization cycles for industrial and laboratory use.

Applications

• Vaccine production and storage
• Biopharmaceuticals and biochemical drugs
• Biological agents, probiotics and diagnostic reagents
• Traditional Chinese medicine extracts and nutritional supplements
• Blood products and other sterile freeze-dried formulations

Key features

• One-piece cabinet construction minimizes leak paths; internal surfaces designed for easy cleaning and sterilization.
• Patented welded shelf plates ensure uniform shelf temperature and improved heat-transfer efficiency.
• Vapor flow guide and optimized cold-trap coil provide large, even ice formation and effective vapor capture.
• High-performance vacuum system with large pumping capacity to accelerate sublimation and reduce cycle times.
• Closed-loop refrigeration with Bitzer unit options for substantial cooling capacity and energy reserve.
• Advanced PLC and SCADA control for recipe management, data logging and remote monitoring of complex cycles.
• Front-end integration possible: filling machines, automatic material handling and other GMP-compliant upstream equipment.
• CIP and SIP options available to support sterilization and regulatory compliance.
• Custom configurations available to match process and throughput requirements.

Technical parameters (summary)

• Vacuum level: ≤1 Pa
• Cold trap temperature: -75 °C
• Shelf temperature range: -50 ~ +70 °C
• Power supply: AC380V 50Hz
• Model series: BK-PFD (examples: BK-PFD5MS/MT, BK-PFD10MS/MT, BK-PFD20MS/MT, BK-PFD30MS/MT, BK-PFD40MS/MT)
• Freeze drying area: ~5.25 m² to ~41 m² depending on model
• Example models — BK-PFD5MS: area 5.25 m², ~22,540 vials (φ16mm, 2 ml), overall power 24 kW; BK-PFD20MS: area 20.2 m², ~84,942 vials, overall power 85 kW; BK-PFD40MT: area 41 m², ~179,955 vials, overall power 180 kW.

Specifications

• Brand: BIOBASE
• Product origin: CHINA
• Typical delivery time: within 7 days
• Supply: factory direct
• Available options: CIP, SIP, PLC & SCADA, front-end automation
• Customization: process-adapted layouts, stoppering/automatic fill integration, shelf sizes and layer counts per model
