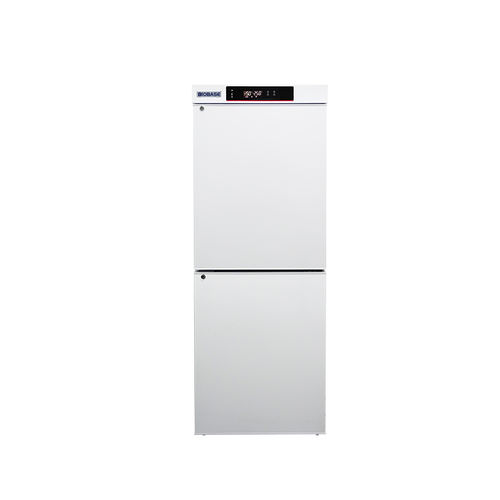

Vaccine refrigerator BRF-25V series

hospitallaboratoryupright

Introduction
The -25℃ combined refrigerator and freezer is designed for laboratory and industrial temperature-controlled storage and low-temperature testing of vaccines, biological products, frozen plasma and other temperature-sensitive materials. Applicable to research institutes, hospitals, university laboratories, electronics and chemical industry R&D.

Brand & Basic Info

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: BRF-25V300, BRF-25V318, BRF-25V368, BRF-25V450

Models & Capacities (summary)
BRF-25V300 | Refrigerator: 174 L | Freezer: 126 L
BRF-25V318 | Refrigerator: 208 L | Freezer: 110 L
BRF-25V368 | Refrigerator: 183 L | Freezer: 185 L
BRF-25V450 | Refrigerator: 295 L | Freezer: 155 L
Refrigerator temp range: 2~8℃; Freezer temp range: -10~-25℃; Temperature accuracy: 0.1℃

Performance & Control

• Temperature uniformity: Refrigerator ≤2℃; Freezer ≤3℃
• Temperature stability: ≤3℃
• Recovery time: Refrigerator ≤15 min (to 8℃ at ambient 32℃); Freezer ≤15 min (to -22℃ at ambient 25℃)
• Cooling time: Refrigerator ≤80 min (to 6℃ at ambient 32℃); Freezer ≤1.5 h (to -25℃ at ambient 25℃)
• Control system: Microprocessor control
• Display: LED
• Alarm functions: high/low temperature, thermostat fault, door switch, power-failure (functions vary by model)

Refrigeration / Refrigerant / Compressor / Defrost

• Refrigerator cooling: Air-cooling
• Freezer cooling: Direct-cooling
• Refrigerants (model dependent): examples R600a, R290 (charges vary by model)
• Compressor: international brand compressor
• Condenser & evaporator: Bundy tube / wire-on-tube condensers and Bundy or copper-tube aluminium-fin evaporators (model dependent)
• Defrost: Refrigerator automatic defrost; Freezer manual defrost

Construction & Materials

• Insulation: Polyurethane cyclopentane foam
• Interior material: HIPS or 304 stainless steel (model dependent)
• Exterior material: Precoated steel plate or sprayed steel plate (model dependent)
• Doors: Outer doors with cyclopentane monolithic foam ×2; inner/freezer door optional depending on model

Consumption, Power & Dimensions

• Power consumption (examples by model): BRF-25V300 160W; BRF-25V318 390W; BRF-25V368 594W; BRF-25V450 410W
• Power supply: AC 220V 50Hz standard; optional 110/220V 60Hz or other configurations (model dependent)
• Casters: Available on some models (model dependent)
• Shelves / drawers: Refrigerator: 3 shelves; Freezer: PS drawers or drawers count varies by model
• Standard accessories: Test port ×2, USB interface
• Optional accessories: Temperature recorder, remote alarm, RS485 interface
• Representative internal sizes (W×D×H) and external sizes available per model — see model specifications

Applications

• Scientific and university laboratories
• Low-temperature testing of special materials
• Storage/testing of frozen plasma, biological materials, vaccines and biological products
• Hospitals, electronics and chemical industry research

Download
Product brochure (PDF): 22-23 -25℃ Freezer(Combined Refrigerator and Freezer).pdf

Technical specifications (highlights)

• Models: BRF-25V300, BRF-25V318, BRF-25V368, BRF-25V450
• Refrigerator range: 2~8℃; Freezer range: -10~-25℃
• Temperature accuracy: 0.1℃; Uniformity: Refrigerator ≤2℃, Freezer ≤3℃
• Control: Microprocessor; Display: LED; Alarms: multi-function
• Refrigeration: Air-cooling (refrigerator) / Direct-cooling (freezer)
• Refrigerants: R600a / R290 (model dependent)
• Construction: Cyclopentane polyurethane foam insulation; Internal/external materials vary by model
• Accessories & communication: Test ports, USB; optional recorder, remote alarm, RS485
