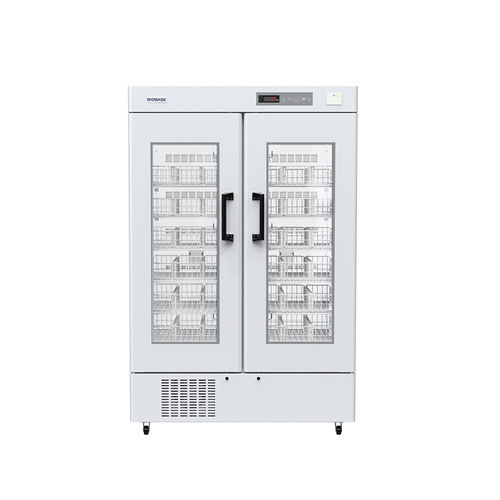

Blood bank refrigerator BBR-4V series

upright2 doorswith glass door

Introduction:
The Blood Bank Refrigerator series is designed for controlled storage of blood products and related biological samples at a stable 2–6℃. Suitable for hospitals, blood banks, transfusion centers and clinical or research laboratories. Temperature is adjustable via the control panel; the unit provides continuous monitoring and reliable temperature maintenance.

Key features:

• Multiple-sensor design for precise monitoring and programmed control.
• Electrically heated glass semi-foamed outer doors for visibility and frost prevention.
• Forced-air refrigeration system to ensure uniform internal temperature distribution.
• Adjustable shelves and classified blood storage baskets to optimize space and organization.
• Individual transparent inner doors to reduce cold-air loss when accessing contents.
• Microprocessor control with LED display and multiple alarm functions.

Technical parameters:
Model: BBR-4V626 | BBR-4V966
Capacity: 626L | 966L
Temp. Range: 2~6℃
Temp. Accuracy: 0.1℃
Temp. Uniformity: ≤1.5℃
Temp. Stability: ≤2℃
Recovery Time (Recover to 6℃ at ambient 32℃): ≤15min
Cooling Time (Cool down to 5℃ at ambient 32℃): ≤100min
Control System: Microprocessor control
Display: LED display
Alarm: High/low temperature, sensor/system failure, door ajar, power failure, battery switch
Refrigeration Type: Air-cooling
Refrigerant: R134a / 240g
Compressor: Branded international compressor ×1
Condenser & Evaporator: Copper tube with aluminum fins
Defrost: Automatic
Construction: Polyurethane cyclopentane foam insulation
Material: Internal — Stainless steel; External — Sprayed steel plate
Doors: Outer electrically heated glass semi-foam doors ×2; Inner acrylic doors ×6
Casters: Yes
Power consumption: 550W | 560W
Power supply: AC220V, 50Hz (Standard); 110/220V, 60Hz (Optional)
Shelves: 12 pcs
Baskets: 36 pcs
Blood bags (450ml): 360 pcs | 576 pcs
Standard accessory: Thermal printer, test hole
Optional accessory: Temperature recorder, USB interface, RS485 interface
Internal size (W×D×H): 1100×420×1325mm | 1100×650×1325mm
External size (W×D×H): 1220×665×1885mm | 1220×895×1885mm
Package size (W×D×H): 1360×770×2100mm | 1360×1000×2100mm
Net weight: 220kg | 246kg
Gross weight: 285kg | 320kg

Applications:

• Hospitals and clinical wards
• Blood banks and transfusion centers
• Clinical diagnostics and research laboratories
• Universities and teaching hospitals

Accessories & options:

• Standard: Thermal printer, test hole
• Optional: External temperature recorder, USB interface, RS485 communication interface

Manufacturer & supply:

• Manufacturer: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
