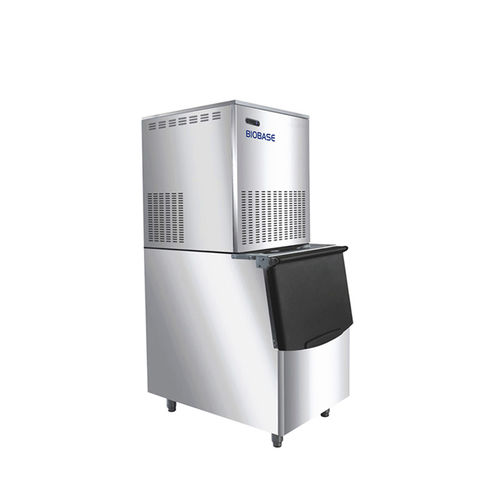

Flake ice maker FIM300

snow

Product Overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Model: FIM300, FIM500

Applications
Suitable for laboratories, hospitals, schools, medical and chemical applications, supermarkets, hotels and seafood retailers for production and storage of flake ice.

Technical Parameters
Model: FIM300 | FIM500
Ice making capacity (kg/24h): 300 | 500
Ice storage capacity: 200 kg | 300 kg
Ice shape: Small-particle irregular snow/flake ice
Input power (W): 1360 W | 1650 W
Condensation: Air cooling
Ambient temperature: 10~35℃
Water temperature: 2~15℃
Tank shell: Stainless steel
Compressor: SECOP (FIM300) | Embraco (FIM500)
Refrigerant: R404a, 420 g | R404a, 600 g
Power supply: AC220V 50/60Hz (standard); 110V 60Hz (optional)

Standard & Optional Accessories

• Standard: Water inlet pipe ×1, Drainage pipe ×1, Ice spoon ×1
• Optional: Filter

Dimensions & Weights
Head size (W×D×H) mm: 565×575×570 | 600×760×740
Ice tank size (W×D×H) mm: 570×800×1020 | 760×840×1120
Package head (W×D×H) mm: 675×680×880 | 720×860×995
Package tank (W×D×H) mm: 600×835×920 | 810×900×1050
Net weight: 95 kg | 125 kg
Gross weight: 143 kg | 175 kg

Key Features / Technical Specifications

• Split-type flake ice maker with separate head and storage tank
• High-capacity production: 300 kg or 500 kg per 24 h
• Integrated stainless-steel ice tank for hygienic storage
• Air-cooled refrigeration with R404a refrigerant
• Different compressors by model: SECOP (FIM300) / Embraco (FIM500)
• Standard accessories for immediate installation; optional filter available
• Designed for operation in ambient 10–35℃ and water 2–15℃
