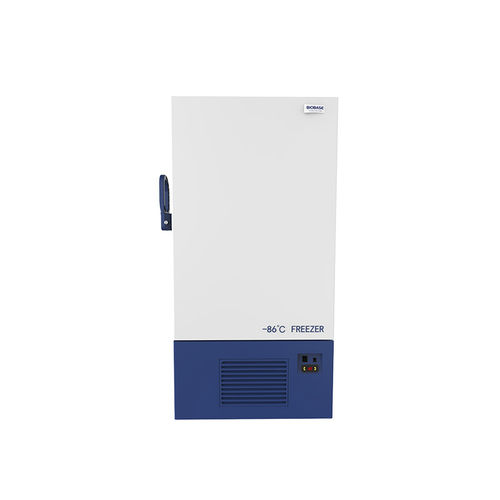

Vaccine freezer BDF-86V168laboratoryfor sample storagebiomedical
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, for vaccines, medical, for sample storage, biomedical
- Configuration
- vertical, on casters
- Number of doors
- 1-door, 2 doors, 3 doors
- Cooling system
- with direct cooling
- Defrost mode
- manual defrost
- Power source
- electric
- Other characteristics
- stainless steel, ultra-low-temperature
- Capacity
Min.: 168 l
(44.38 gal)Max.: 348 l
(91.93 gal)- Temperature range
Min.: -86 °C
(-122.8 °F)Max.: -40 °C
(-40 °F)- Width
Min.: 84.4 cm
(33.2 in)Max.: 86.9 cm
(34.2 in)- Depth
Min.: 80.7 cm
(31.8 in)Max.: 98.9 cm
(38.9 in)- Height
Min.: 159.4 cm
(62.8 in)Max.: 192.4 cm
(75.7 in)- Weight
Min.: 168 kg
(370.4 lb)Max.: 232 kg
(511.5 lb)
Description
Introduction
The -86℃ ultra-low temperature freezer is designed for long-term storage of temperature-sensitive biological and medical samples. It delivers a stable ultra-low environment for preservation of vaccines, cells, tissues, reagents and other critical materials used in laboratories and medical facilities.
Product information
Technical Parameters
Model: BDF-86V168 | BDF-86V348
Capacity: 168 L | 348 L
Temperature range: -40 ~ -86℃
Temperature accuracy: 0.1℃
Temperature uniformity: ±4℃
Temperature stability: ≤6℃
Recovery time (to -75℃ at ambient 25℃): ≤15 min
Cooling time (to -80℃ at ambient 25℃): ≤4 h
Control system: Microprocessor control
Display: LED
Alarm: High/low temperature, thermostat fault, door switch, power failure (72 h)
Refrigeration type: Direct-cooling
Refrigerant: R600a / R1150 / R14 (137 g | 193 g depending on model)
Compressor: International brand compressor (1)
Condenser & Evaporator: Micro-channel condenser; built-in copper coil; copper tube and aluminum fins
Defrost: Manual
Insulation: Polyurethane cyclopentane foam
Internal material: SUS304 stainless steel
External material: Sprayed steel plate
Doors: 1 outer door; 3 inner doors (BDF-86V168) / 2 inner doors (BDF-86V348)
Power consumption: 650 W (Apparent power: 858 VA)
Power supply: AC220V 50Hz standard (220V/60Hz, 110V/60Hz optional)
Casters: Yes
Shelves: 2 (168 L) / 3 (348 L)
Standard accessory: Test port x2
Optional accessories: RS485, USB, liquid nitrogen backup system, temperature recorder
Internal size (W*D*H): 465*455*820 mm | 490*612*1150 mm
External size (W*D*H): 844*807*1594 mm | 869*989*1924 mm
Package size (W*D*H): 1000*970*1790 mm | 1020*1180*2130 mm
Net weight: 168 kg | 232 kg
Gross weight: 221 kg | 300 kg
Product tags
Characteristics / technical specifications
The -86℃ ultra-low temperature freezer is designed for long-term storage of temperature-sensitive biological and medical samples. It delivers a stable ultra-low environment for preservation of vaccines, cells, tissues, reagents and other critical materials used in laboratories and medical facilities.
Product information
- Brand: BIOBASE
- Product origin: CHINA
- Delivery time: Within 7 days
- Supply capacity: Factory direct supply
- Model: BDF-86V168; BDF-86V348
Technical Parameters
Model: BDF-86V168 | BDF-86V348
Capacity: 168 L | 348 L
Temperature range: -40 ~ -86℃
Temperature accuracy: 0.1℃
Temperature uniformity: ±4℃
Temperature stability: ≤6℃
Recovery time (to -75℃ at ambient 25℃): ≤15 min
Cooling time (to -80℃ at ambient 25℃): ≤4 h
Control system: Microprocessor control
Display: LED
Alarm: High/low temperature, thermostat fault, door switch, power failure (72 h)
Refrigeration type: Direct-cooling
Refrigerant: R600a / R1150 / R14 (137 g | 193 g depending on model)
Compressor: International brand compressor (1)
Condenser & Evaporator: Micro-channel condenser; built-in copper coil; copper tube and aluminum fins
Defrost: Manual
Insulation: Polyurethane cyclopentane foam
Internal material: SUS304 stainless steel
External material: Sprayed steel plate
Doors: 1 outer door; 3 inner doors (BDF-86V168) / 2 inner doors (BDF-86V348)
Power consumption: 650 W (Apparent power: 858 VA)
Power supply: AC220V 50Hz standard (220V/60Hz, 110V/60Hz optional)
Casters: Yes
Shelves: 2 (168 L) / 3 (348 L)
Standard accessory: Test port x2
Optional accessories: RS485, USB, liquid nitrogen backup system, temperature recorder
Internal size (W*D*H): 465*455*820 mm | 490*612*1150 mm
External size (W*D*H): 844*807*1594 mm | 869*989*1924 mm
Package size (W*D*H): 1000*970*1790 mm | 1020*1180*2130 mm
Net weight: 168 kg | 232 kg
Gross weight: 221 kg | 300 kg
Product tags
- Ultra-cold storage
- Cryogenic freezer
- Deep freezer
- Biomedical freezer
- Vertical -86℃ freezer
Characteristics / technical specifications
- Temperature range: -40 ~ -86℃
- Accuracy: 0.1℃
- Uniformity: ±4℃
- Stability: ≤6℃
- Cooling time to -80℃: ≤4 h
- Recovery time to -75℃: ≤15 min
- Capacity options: 168 L / 348 L
- Internal material: SUS304 stainless steel
- Refrigeration: Direct-cooling; refrigerants R600a / R1150 / R14
- Power supply: AC220V 50Hz standard (other options available)
- Standard accessory: Test port x2
- Optional accessories: RS485, USB, LN2 backup, temperature recorder
