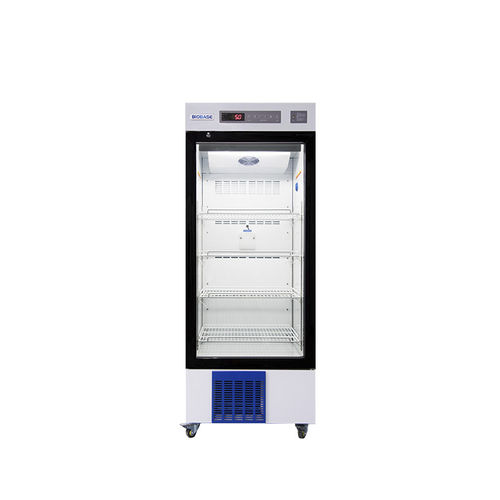

Laboratory refrigerator BPR-5V series

upright1-doorwith glass door

Product overview
Brand: BIOBASE
Origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BPR-5V288S; BPR-5V298; BPR-5V358S; BPR-5V368; BPR-5V468

Introduction
This laboratory refrigerator is designed for controlled storage of reagents, culture media, proteins and biomedical samples in clinical, research and industrial laboratory settings. It provides precise temperature control, alarm functions and options for data communication to support traceability and sample integrity.

Technical parameters
Models: BPR-5V288S | BPR-5V298 | BPR-5V358S | BPR-5V368 | BPR-5V468
Capacity: 288L | 298L | 358L | 368L | 468L
Temperature range: 2~8℃
Temperature accuracy: 0.1℃
Temperature uniformity: ≤2℃
Temperature stability: ≤3℃
Recovery time (recover to 8℃ at ambient 32℃): ≤15 min
Cooling time (cool down to 6℃ at ambient 32℃): ≤55 min | ≤120 min | ≤60 min | ≤70 min | ≤70 min
Control system: Microprocessor control
Display: LED
Alarm functions: high/low temperature, thermostat fault, door switch, power failure backup (8 h)
Refrigeration: air-cooling; refrigerants vary by model (R290 / R600a)
Compressor: internationally branded compressor
Condenser & evaporator: Bundy tube / copper or aluminum tube with aluminum fins (model-dependent)
Defrost: Automatic
Insulation: Polyurethane cyclopentane
Internal material: painted steel plate or embossed aluminum (model-dependent)
External material: painted steel plate
Door: Electrically heated glass door ×1
Power consumption: 260W | 189W | 260W | 230W | 220W (model-dependent)
Power supply: AC220V 50Hz standard (110V/60Hz or 220V/60Hz optional on request)
Casters: Yes
Shelves: 4 or 5 depending on model
Standard accessories: test hole, USB interface
Optional accessories: RS485, printer, temperature recorder
Internal size (W×D×H mm): 530×520×1096 | 530×410×1375 | 530×520×1325 | 566×475×1290 | 580×613×1325
External size (W×D×H mm): 640×665×1658 | 620×575×1980 | 640×665×1886 | 650×600×2010 | 680×747×1885
Package size (W×D×H mm): 770×800×1830 | 720×660×2160 | 770×800×2060 | 740×695×2230 | 830×880×2050
Net weight: 110kg | 78kg | 120kg | 90kg | 135kg
Gross weight: 127kg | 88kg | 140kg | 105kg | 158kg

Product features / highlights

• Designed for reliable storage of reagents, media, proteins and biomedical samples
• Precise microprocessor temperature control with 0.1℃ accuracy and LED display
• Comprehensive alarms for high/low temperature, thermostat fault, door open and power failure (8 h)
• Energy-efficient air-cooling with low‑GWP refrigerant options depending on model
• Automatic defrost and polyurethane insulation for improved temperature stability
• Optional interfaces for data logging and remote monitoring (RS485, printer, temperature recorder)

Specifications

• Temperature range: 2~8℃
• Accuracy: 0.1℃
• Uniformity: ≤2℃
• Stability: ≤3℃
• Control: Microprocessor
• Display: LED
• Alarms: high/low temp, thermostat fault, door switch, power failure (8 h)
• Refrigeration: Air-cooling; refrigerant options R290 or R600a (model-dependent)
• Insulation: Polyurethane cyclopentane
• Door: Electrically heated glass door ×1
• Accessories: Standard test hole and USB; optional RS485, printer, temperature recorder
• Mobility: Casters included
• Available capacities: 288L / 298L / 358L / 368L / 468L
