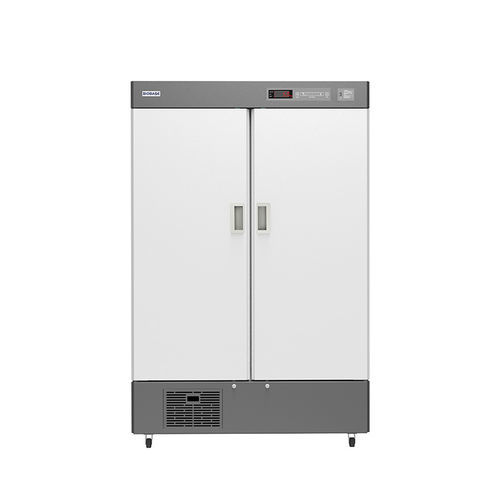

Healthcare facility refrigerator BPR-5V628F

for hospitalslaboratoryfor clinical laboratories

Overview
The laboratory refrigerator is a high-performance refrigeration unit designed for laboratories and research institutions. It delivers precise temperature control and a stable cold environment to protect biological samples, reagents and other temperature-sensitive materials. Suitable for clinical labs, biotech, chemical and environmental research.

Basic information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: BPR-5V628F, BPR-5V1008F

Technical Parameters (table)
Model: BPR-5V628F / BPR-5V1008F
Capacity: 628L / 1008L
Temp. Range: 2~8℃
Temp. Accuracy: 0.1℃
Temp. Uniformity: ≤2℃
Temp. Stability: ≤3℃
Recovery Time (recover to 8℃ at ambient 32℃): ≤15 min
Cooling Time (cool down to 6℃ at ambient 32℃): ≤80 min
Control System: Microprocessor control
Display: LED
Alarm: High/low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm (8h)
Refrigeration Type: Air-cooling
Refrigerant: R290 / 150g
Compressor: International brand compressor (1)
Condenser & Evaporator: Copper tube, aluminum fin type
Defrost: Automatic defrost
Insulation: Polyurethane cyclopentane
Internal Material: Sprayed steel plate
External Material: Sprayed steel plate
Door: Cyclopentane integral foam door ×2 (where applicable)
Power Consumption: 296W
Power Supply: AC220V, 50Hz (standard); 110/220V, 60Hz (optional)
Casters: Yes
Shelves: 10
Standard Accessory: Test hole, USB interface
Optional Accessory: RS485, printer, temperature recorder
Internal Size (W*D*H): 1100*454*1305mm / 1100*710*1305mm
External Size (W*D*H): 1220*598*1886mm / 1220*828*1886mm
Package Size (W*D*H): 1340*750*2100mm / 1340*980*2100mm
Net Weight: 181kg / 204kg
Gross Weight: 215kg / 248kg

Features / specifications

• Operating range 2–8℃ with 0.1℃ accuracy
• Temperature uniformity ≤2℃; stability ≤3℃
• Fast recovery (≤15 min to 8℃) and cooling performance (≤80 min to 6℃)
• Microprocessor control with LED display and multi-level alarms
• Air-cooling system using R290 (150g) refrigerant and a branded compressor
• Copper-tube, aluminum-fin condenser/evaporator and automatic defrost
• Polyurethane (cyclopentane) insulation; sprayed steel interior/exterior
• Two integral foam doors, caster mobility and 10 adjustable shelves
• Standard ports: test hole and USB; optional RS485, printer, recorder
• Comprehensive dimensions and weights provided for logistics planning

Application
Used for secure storage and temperature control of biological samples, reagents and sensitive materials in clinical laboratories, research institutes, hospitals and biotech facilities.
