Temperature data-logger ValProbe® RT

pressurehumiditywireless

Overview
The Kaye ValProbe RT Base Station is the real‑time wireless interface for Kaye ValProbe RT data logger networks. It provides reliable RF communications, local data buffering and field-ready connectivity to support thermal validation and regulatory workflows in pharmaceutical, biotech and related regulated environments.

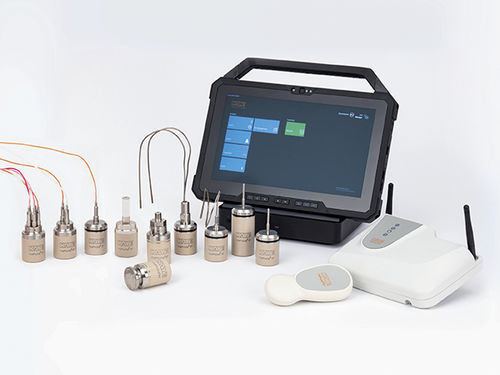

System components

• Base Station providing RF link, antenna diversity and network connectivity (Ethernet, USB).
• Compatible real‑time wireless data loggers for temperature, pressure and humidity (rigid, bendable, flexible, surface and P/T variants).
• Validation Console running ValProbe RT software (Windows 10 LTSC) for setups, qualifications, logger verification, reporting and data management.

Key product benefits

• Real‑time RF communications with antenna diversity to maximise signal reliability in challenging environments.
• Local 32 GB internal memory and battery backup for continued operation during short power interruptions.
• Standalone or networked operation (Ethernet, USB MOPS reader) for flexible field use or desktop installation.
• Supports regulatory features when used with ValProbe RT software: audit trails, role‑based access and data integrity controls.
• Field‑replaceable battery and simple indicators for study and battery status.

Applications (typical)

• Steam sterilizers
• Dry heat sterilizers
• Steam in Place (SIP)
• Water cascade / fall sterilizers
• Incubators
• Stability chambers
• Freezers
• Freeze dryers / lyophilization
• Process vessels

Technical specifications

• Dimensions: 190 mm x 130 mm x 55 mm (approx.).
• RF range: up to 150 m (line‑of‑sight, system dependent).
• Internal memory: 32 GB; local buffering of study data.
• Power: 100–240 VAC, 50/60 Hz; battery backup ~10 minutes (model dependent).
• Interfaces: Ethernet, USB port for high‑speed RF reader (MOPS).
• Antenna: dual antenna technology; supports autoclave/remote antenna installation.
• Indicators: LED for power/study/battery status; logger wake‑up sound and wake‑up magnet support.
• System capacity: example configurations up to 50 loggers / 250 sensors (system specific).
• Operating integration: works with ValProbe RT software for sampling rates down to 1 s, non‑volatile logger storage up to 100,000 samples per sensor and automated verification.
• Compliance: CE, UL; calibration options NVLAP / DAkkS when applicable.
