Temperature sensor ValProbe

monitoringmedicalfor the pharmaceutical industry

Overview

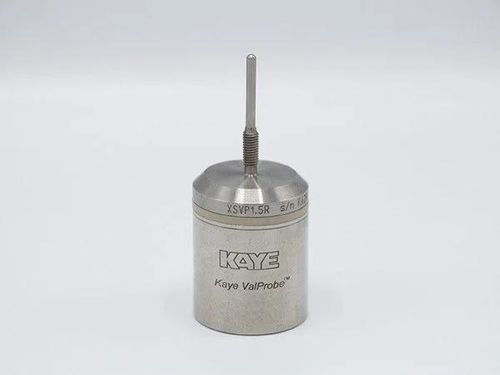

The Kaye ValProbe family of temperature loggers provides accurate, convenient and reliable process measurement for pharmaceutical and medical device environments. Wireless probes simplify monitoring and validation in ovens, sterilizers, lyophilizers and other hard-to-reach locations. Probes are offered in rigid and bendable configurations to match insertion and measurement requirements.

Features

• RTD sensor technology for high accuracy across a wide temperature range
• System downloads up to 10 probes simultaneously
• Cycle-based data collection, calculation and reporting from up to 200 sensors
• Enables compliance with FDA Regulation 21 CFR Part 11
• Designed for easy on-site calibration
• Battery life indicator and field-replaceable battery
• Reporting can merge with a Validator study or an RF ValProbe study

Applications

• Sterilizers
• Ovens
• Tunnels
• Lyophilizers (freeze dryers)
• Stability chambers
• Warehouses
• Temperature chambers

Specifications
Specifications | Rigid | Bendable
Sensor Type | Single sensor | Single and dual sensor
Sensor Length | 1.5, 3, 6, 9 inches (38, 76, 152, 229 mm) | 12, 24, 36 inches (305, 610, 915 mm)
Tip Diameter | 0.118 inches (3 mm) | 0.095 inches (2.4 mm)
Measurement Range | -45 °C to 140 °C | -45 °C to 400 °C
Accuracy | Rigid: -45 °C to 0 °C ±0.25 °C; 0 °C to 140 °C ±0.1 °C | Bendable: ±0.25 °C from -45 °C to 0 °C; ±0.1 °C from 0 °C to 140 °C; ±0.2 °C from 140 °C to 250 °C; ±0.5 °C from 250 °C to 360 °C

Technical characteristics

• RTD sensor technology ensures precise measurement across wide temperature ranges
• Available probe forms: rigid (typically single sensor) and bendable (single or dual sensor)
• Multiple probe lengths for shallow or deep insertion points
• Small tip diameters for minimal footprint in product loads
• Measurement ranges to suit standard sterilization and deep-temperature processes
• System supports up to 10 simultaneous probe downloads and data from up to 200 sensors
• Cycle-based collection, calculation and reporting to streamline validation workflows
• On-site calibration design and field-replaceable battery with life indicator
• Integration-ready reporting compatible with Validator and RF ValProbe studies
• Supports regulatory compliance such as FDA 21 CFR Part 11
