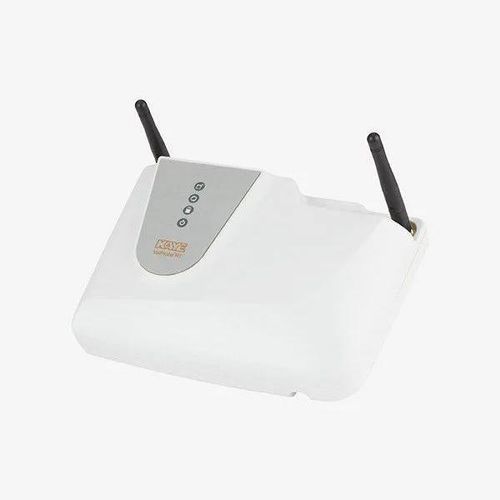

Autoclave data acquisition system ValProbe RT

for environmental analysisfor pharmaceutical laboratoriesfor sterilizers

Description

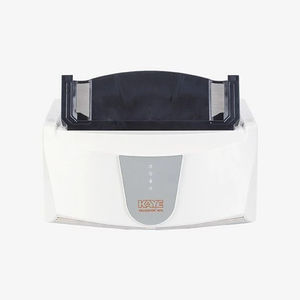

The base station serves as the interface between individual loggers and the ValProbe RT system software. It is designed for qualification, calibration and verification studies within sterilization, stability and environmental monitoring workflows. Its compact form factor and battery backup make it suitable for field use or desktop deployment. The station supports autoclave antenna installation for in-chamber communication and is compatible with the full range of high-accuracy temperature and pressure data loggers.

Features

• Dual antenna technology — allows installation of autoclave antenna
• Compact design for field or desktop operation
• Operable as standalone system with internal 32 GB memory
• Power supply: 100 – 240 VAC 50/60 Hz
• Battery backup: up to 10 minutes
• Ethernet network connection
• USB port for high-speed RF reader (MOPS)
• LED indicators for battery and study status
• Logger wake-up sound indicator
• Wake-up magnet

Applications

• Steam sterilizers (autoclaves)
• Dry heat sterilizers
• Steam-in-place (SIP) processes
• Water cascade / fall sterilizers
• Incubators
• Stability chambers
• Freezers
• Freeze dryers / lyophilization
• Process vessels

Technical specifications

• RF range: up to 100 meters
• Dual antenna technology; supports autoclave antenna installation
• Standalone operation: internal 32 GB memory
• Power supply: 100 – 240 V (50/60 Hz)
• Battery backup: up to 10 minutes
• USB port for high-speed RF reader (MOPS)
• Ethernet network connection
• Logger wake-up sound indicator
• LED indicators for battery and study condition
• Certifications: CE, UL
