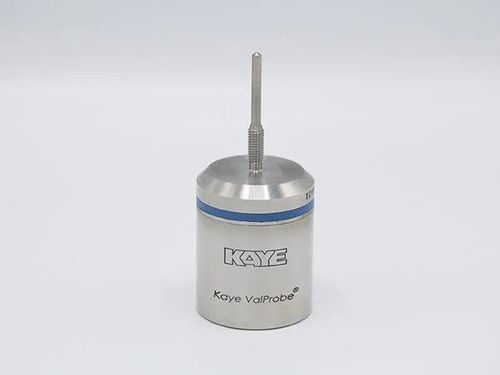

Temperature data-logger ValProbe®

pressurefor refrigeratorfor freezer

Overview
The ValProbe® system uses a wireless probe design that removes the need for hard-wired sensors, simplifying access to hostile, remote or hard-to-reach environments. ValProbe is intended for applications requiring high measurement accuracy and regulatory traceability, including sterilization, pharmaceutical processing and environmental monitoring.

Applications

• Pharmaceutical processing
• Medical device sterilization
• Food processing and HACCP monitoring
• Environmental monitoring
• Saturated-steam sterilizers
• Industrial ovens
• Lyophilizers (freeze dryers)
• Stability and temperature chambers
• Refrigerators and freezers
• Warehouses and cold chain facilities

System Capabilities
Built-in data processing and reporting extend ValProbe functionality beyond raw acquisition. The system calculates results and generates user-defined reports for up to 200 sensors concurrently. Graph reports can combine multiple sensors and configurable limits for straightforward study review. User calibration and on-site verification are supported; CTR-40 Temperature Reference simplifies checks. ValProbe meets FDA 21 CFR Part 11 requirements for electronic records and signatures and complies with ISO-17665, EN285 and HTM-2010 for saturated steam sterilization. A Cryo Logger variant supports applications down to -85°C.

Features

• Precision Platinum RTD technology for high accuracy across wide ranges
• System downloads up to 10 probes simultaneously
• Cycle-based data collection, calculation and reporting for up to 200 sensors
• Enables compliance with FDA 21 CFR Part 11
• Operating range (system capability): -45°C to 140°C; environmental pressure up to 10 bar absolute
• Designed for easy on-site calibration and automated user verification
• Field-replaceable 3.6V lithium battery with battery-life indicator
• Economical validation starter kit available (example P/N V2543: software, single reader, two temperature and one pressure logger)
• Reporting with up to 25 user-programmable groups

Kaye ValProbe Generic Specifications
Reader 2 Dimensions: 320 mm x 155 mm x 60 mm (12.60” x 6.10” x 2.36”)
Logger Dimensions: Height 48 mm / Diameter 36 mm (1.9” x 1.4”)
Logger Material: Stainless Steel 316L and PEEK
Battery: Field-replaceable 3.6V lithium
Sampling Rate: 1 second to 12 hours
Data Storage: 10,000 samples in non-volatile memory
Real-Time Clock Accuracy: < 15 seconds per day
Calibration: NVLAP/DAkkS calibration available
Verification: Automated user verification capability
Sensing Element: Precision Platinum RTD
Environmental Temperature (variant dependent): -85°C / -45°C to 140°C
Environmental Pressure: 0 – 10 bar absolute
Environmental Humidity: 0 – 100% condensing
Regulatory Compliance: UL, CE

Kaye ValProbe Temperature Loggers - Key Specification Table (by sensor type)
Sensor Type: Rigid / Flexible / Bendable / Surface
Sensor Lengths: Rigid: 1.5, 3, 6, 9” (38, 76, 152, 229 mm); Flexible: 40” (1000 mm); Bendable: 12, 24, 36” (305, 610, 915 mm); Surface: —
Tip Diameter: Rigid: 0.118” (3 mm); Flexible/Bendable: 0.095” (2.4 mm); Surface: 1.26” (32 mm)
Measurement Range: Rigid/Flexible/Surface: -85°C / -45°C to 140°C; Bendable: -85°C / -45°C to 400°C (variant dependent)
Accuracy: Cryo VP: -85°C to 0°C ±0.25°C; Standard VP: -45°C to 0°C ±0.25°C; 0°C to 140°C ±0.1°C (typical)

Kaye ValProbe Pressure, Temperature and Humidity Logger Specifications (summary)
Environmental Temperature: Pressure & Temp logger: 0°C to 140°C; Humidity & Temp logger: 0°C to 90°C
Sensor Type: Pressure & Temp: combined P/T sensor; Humidity & Temp: RH sensor EMD4000
Tip / Connection: Pressure & Temp: 1/4” NPT fitting; Humidity tip: Ø 18 mm, length 35 mm
Measurement Range: Pressure & Temp: 0°C to 140°C / 0 – 5 bar abs.; Humidity & Temp: 25% to 85% RH and 0°C to 90°C
Accuracy: Pressure & Temp: temperature-dependent pressure specifications; Temperature accuracy 0°C to 140°C ±0.1°C; Humidity accuracy 25%–85% RH ±2% RH (25°C–40°C); Temp accuracy 0°C to 90°C ±0.1°C

Technical characteristics / specifications

• Supports up to 200 sensors with concurrent graphing and reporting
• Precision Platinum RTD sensing element
• Data storage: 10,000 samples non-volatile
• Sampling interval user-selectable from 1 s to 12 h
• Field-replaceable 3.6V lithium battery; battery-life indicator
• Logger construction: Stainless Steel 316L and PEEK; size 48 mm H x 36 mm Ø
• Operating environment: temperature variants from -85°C up to 400°C depending on logger type; pressure up to 10 bar abs.; humidity up to 100% condensing
• Regulatory: UL, CE; meets FDA 21 CFR Part 11 and standards ISO-17665, EN285, HTM-2010 for saturated steam sterilization
• Real-time clock accuracy: < 15 seconds/day
• Calibration options: NVLAP/DAkkS; automated user verification
