Pressure data-logger ValProbe RT

temperaturehumidityfor freezer

Overview

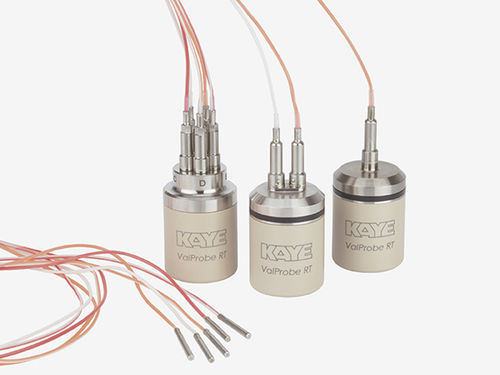

The Kaye ValProbe RT real-time temperature data loggers are available with flexible, Teflon™-coated sensor cables in single-, dual- and 5-channel configurations. Each sensor stores up to 100,000 data points in non-volatile memory. The flexible sensor cable is 1 m (40") long and terminates in a stainless-steel tip protecting the precision platinum RTD element. Operating range: -85°C to +140°C. These loggers are designed for validation and monitoring tasks in pharmaceutical and GxP environments.

Key benefits

• Multiple sensor configurations (single, dual, 5-channel) for point or multi-point monitoring.
• Large on-board storage: 100,000 samples per sensor retained in non-volatile memory.
• Long, flexible Teflon™-coated cable (1 m / 40") and compact stainless-steel tip for penetration and confined-space measurements.
• Precision RTD sensing with high accuracy across a wide temperature range suitable for validation tasks.

Features

• Temperature range: -85°C to +140°C
• Available sensor configurations: Single, Dual, 5-Channel
• Sensor cable length: 1,000 mm (40")
• Sensor tip diameter: 2.4 mm; tip length: 25 mm (0.98")
• Data storage: 100,000 samples per sensor (non-volatile)
• Sampling rate: starting at 1 second
• Accuracy: ±0.1°C across -85°C to 140°C (precision platinum RTD)
• Logger dimensions: H 48 mm / Ø 36 mm (1.9" x 1.4")
• Materials: Stainless Steel 316L and PEEK
• Battery: Field-replaceable 3.6 V Lithium
• Real-time clock accuracy: < 15 sec/day
• Calibration: NVLAP (LAB CODE 200913-0) / DAkkS available
• Verification: Automated user verification capability

Applications

• Steam sterilizers (autoclaves)
• Steam‑in‑Place (SIP) processes
• Waterfall/cascade sterilizers
• Incubators and stability chambers
• Freezers and refrigerators
• Freeze-dryers / lyophilization studies
• Bioreactors and process vessels

Technical specifications

• Product family: ValProbe RT Flexible
• Sensor type: Single, Dual, 5-Channel (flexible)
• Sensor length: 1,000 mm (40")
• Tip diameter: 0.095" (2.4 mm)
• Tip length: 25 mm (0.98")
• Measurement (operating) range: -85°C to 140°C
• Accuracy: ±0.1°C across -85°C to 140°C
• Logger dimensions: H 48 mm / Ø 36 mm
• Logger material: Stainless Steel 316L and PEEK
• Battery: Field replaceable 3.6 V Lithium
• Sampling rate: starting at 1 s
• Data storage: 100,000 samples per sensor (non-volatile)
• Real-time clock accuracy: < 15 sec/day
• Calibration: NVLAP / DAkkS
• Environmental: Temperature -85°C to 140°C; Pressure 0–5 bar absolute; Humidity 0–100% condensing
• Regulatory compliance: UL, CE
