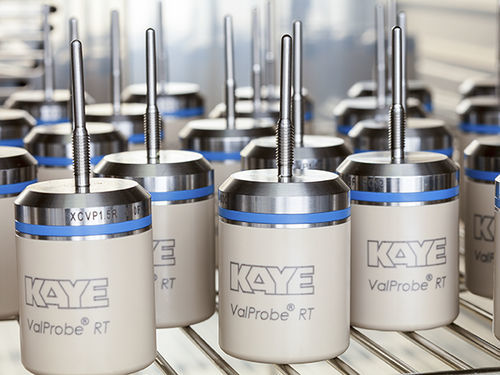

Temperature data-logger Kaye ValProbe ® RT

for temperature traceabilityfor freezerfor pharmaceutical products

Description
The Kaye ValProbe RT rigid-sensor data logger is a temperature monitoring device for validation and process control in sterile and temperature-controlled environments. It integrates a precision platinum RTD sensor with a rigid probe design to measure from -85°C to +140°C and is engineered for applications such as sterilizer qualification, stability chambers and lyophilization processes.

Key features

• Measurement range (complete logger): -85°C to 140°C
• Single precision RTD sensor, rigid probe
• Probe lengths available: 1.5, 3, 6, 9 in (38, 76, 152, 229 mm)
• Probe tip diameter: 3 mm (0.118 in)
• Operator-programmable sampling starting at 1 second; up to 100,000 data points stored
• Antenna diversity for robust RF communications

Applications

• Steam sterilizer validation
• Dry heat sterilizer monitoring
• Steam-in-place (SIP) process control
• Water cascade / autoclave qualification
• Incubator and stability chamber monitoring
• Freezers and cold-chain validation
• Freeze-drying / lyophilization process monitoring
• Vessel and bioprocess temperature mapping

Specifications (rigid sensor)
Sensor type: Single precision platinum RTD
Sensor lengths: 1.5, 3, 6, 9 in (38, 76, 152, 229 mm)
Tip diameter: 0.118 in (3 mm)
Measurement range: -85°C to 140°C
Accuracy: ±0.1°C across the measurement range


Kaye ValProbe RT — Generic Specifications
Logger dimensions: Height 1.9 in / Diameter 1.4 in (48 mm / 36 mm)
Logger materials: Stainless steel 316L and PEEK
Battery: Field-replaceable 3.6 V lithium cell
Sampling rate: Programmable starting at 1 second
Data storage: 100,000 samples retained in non-volatile memory
Real-time clock accuracy: < 15 sec/day


Kaye ValProbe RT — Additional Generic Specifications
Calibration: NVLAP (NVLAP LAB CODE 200913-0) / DAkkS calibration available
Verification: Automated user verification capability
Environmental ratings: Temperature -85°C to 140°C; Pressure 0–5 bar absolute; Humidity 0–100% condensing
Regulatory compliance: UL and CE


Technical characteristics

• Product family / model: Kaye ValProbe RT (rigid sensor)
• Sensor configuration: Single rigid RTD
• Available probe lengths: 38, 76, 152, 229 mm
• Tip diameter: 3 mm
• Measurement range: -85°C to +140°C
• Accuracy: ±0.1°C
• Logger size: H 48 mm x Ø 36 mm
• Materials: Stainless steel 316L and PEEK
• Battery: 3.6 V, field replaceable
• Sampling: Programmable from 1 s
• Memory: 100,000 non-volatile samples
• RTC accuracy: < 15 sec/day
• Calibration options: NVLAP / DAkkS
• Sensing element: Precision platinum RTD
• Environmental ratings: -85°C to 140°C; 0–5 bar abs; 0–100% condensing humidity
• Regulatory: UL, CE
