Pressure transducer

Overview

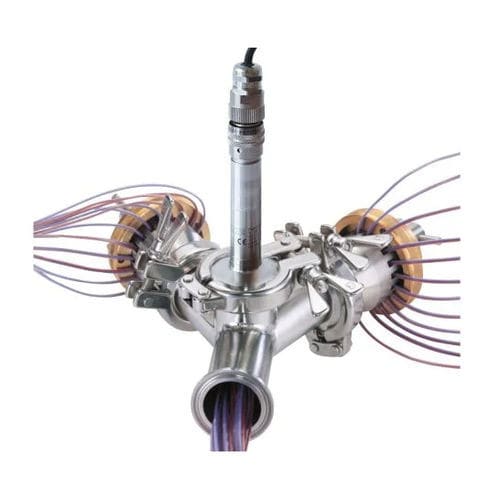

The Kaye absolute pressure transducer is a high-precision sensor engineered for autoclaves, steam sterilizers and Steam‑in‑Place (SIP) systems. It measures absolute pressure in parallel with temperature to support saturated steam validation and autoclave qualification. Optimized for direct integration with Kaye Validator systems (Kaye Validator AVS, Kaye Validator 2000), it requires no external power when wired to compatible Kaye equipment.

Why pressure measurement matters
Accurate pressure measurement alongside temperature is essential for steam sterilization validation. Pressure determines the boiling point and therefore the saturated steam temperature. Monitoring pressure verifies saturated conditions, helps detect leaks or vacuum faults and provides information on steam quality (steam-to-liquid ratio), all critical for validation and process control.

Calibration and temperature compensation
Pressure sensors are sensitive to temperature. For highest accuracy, calibration should be performed at the transducer's operating temperature; for autoclave use this commonly includes calibration at 121°C. Kaye pressure transducers used for autoclave validation are calibrated at operating temperatures and include temperature compensation to minimise measurement deviations under steam conditions.

Integration and usage
The transducer provides a voltage output compatible with Kaye Validator wiring (1 V to 5 V sensitivity range) and mounts directly to a 1.5 in Tri‑Clover flange. It is specified and calibrated across the full autoclave temperature range and is suitable for dynamic pressure measurement during validation and routine process monitoring.

Features

• Designed for steam sterilizers and SIP environments
• High‑precision absolute pressure measurement over autoclave temperature range
• Direct mount to 1.5 in Tri‑Clover flange
• Full ISO‑17025 traceable calibration across pressure and temperature range
• Direct wiring to Kaye Validator systems without external power when used with compatible Validator models

Applications

• Autoclave qualification and validation
• Steam quality monitoring and steam applications
• Steam‑in‑Place (SIP) systems

Specifications
Type: Absolute Pressure Transducer
Range: 0 bar to 4 bar (59 psia) Absolute
Sensitivity: 1 V to 5 V
Non‑linearity & hysteresis: ±0.2% combined
Temp. compensated range: 110°C – 140°C
Accuracy: 10 mbar (0.147 psi) at 110°C – 140°C
Calibration: Pressure calibration performed at 23°C and 121°C (ISO‑17025 traceable)

Software support

• Kaye Validator Report Wizard produces reports compliant with EN554, HTM2010 and ISO‑17665
• Saturated pressure and temperature graphing using measured temperature and pressure alongside calculated saturated readings
• Automatic equilibration pass/fail determination and Tb / Tb+3 limit calculation based on saturated conditions

Technical specifications

• Type: Absolute Pressure Transducer
• Measurement range: 0–4 bar abs (59 psia)
• Output sensitivity: 1 V to 5 V
• Combined non‑linearity & hysteresis: ±0.2%
• Temperature compensated range: 110°C–140°C
• Accuracy: 10 mbar within compensated range
• Calibration: performed at 23°C and 121°C, ISO‑17025 traceable
• Mechanical: direct fit to 1.5 in Tri‑Clover flange
• Integration: direct wiring to Kaye Validator systems (no external power with compatible Validators)
