Pressure data-logger ValProbe RT

temperaturefor temperature traceabilitysterilization

Description

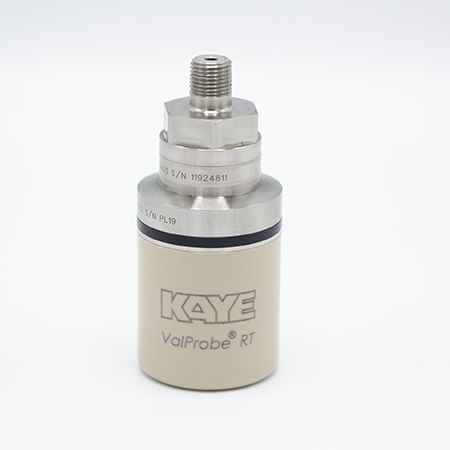

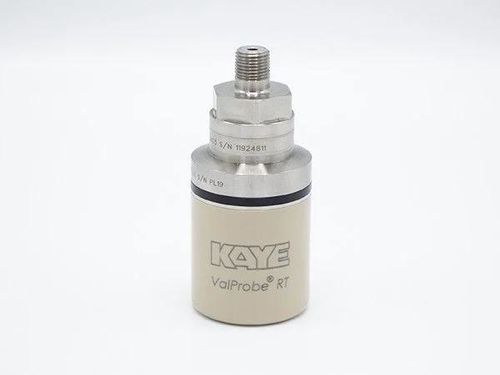

The Kaye ValProbe RT pressure and temperature data logger combines RTD temperature sensing and an absolute pressure sensor in a single compact unit. It measures temperature from 0°C to 140°C and absolute pressure up to 5 bar with 1 mbar resolution. The electronic design and field-replaceable 3.6 V lithium battery support extended deployments. Antenna diversity improves RF communication reliability.

Key features

• Temperature range (complete logger): 0°C to 140°C
• Pressure range: 0 to 5 bar absolute, 1 mbar resolution
• Connection fitting: 1/4 NPT

Applications

• Steam sterilizers / autoclaves
• Steam in Place (SIP) processes
• Water cascade / fall sterilizers
• Process and storage vessels

Specifications
Specifications: Pressure/Temp
Sensor Type: Single P/T sensor (combined pressure and RTD temperature)
Sensor Length: –
Tip / Connection: 1/4 NPT connection fitting
Measurement Range: 0°C to 140°C / 0–5 bar absolute
Pressure Accuracy: 0°C to 120°C ±25 mbar; 120°C to 135°C ±10 mbar; 135°C to 140°C ±25 mbar
Temperature Accuracy: 0°C to 140°C ±0.1°C

Kaye ValProbe RT – General specifications
Logger Dimensions: Height 1.9'' / Diameter 1.4'' (48 mm / 36 mm)
Logger Material: Stainless steel 316L and PEEK
Battery: Field-replaceable 3.6 V lithium
Sampling Rate: From 1 s
Data Storage: 100,000 samples retained in non-volatile memory
Real-Time Clock Accuracy: < 15 sec/day

Calibration & environment
Calibration: NVLAP (NVLAP LAB CODE 200913-0) / DAkkS calibration available
Verification: Automated user verification capability
Environmental Pressure: 0–5 bar absolute
Environmental Humidity: 0–100% condensing
Regulatory Compliance: UL and CE

Technical characteristics

• Product family / series: Kaye ValProbe RT
• Combined measurement: Pressure and temperature in a single sensor
• Temperature sensor technology: RTD
• Temperature range and accuracy: 0°C to 140°C, ±0.1°C
• Pressure range, resolution and accuracy: 0–5 bar abs., 1 mbar resolution; accuracy by temperature range as above
• Connection: 1/4 NPT
• Logger dimensions: 48 mm (H) x 36 mm (Ø)
• Materials: Stainless steel 316L and PEEK
• Battery: Field replaceable 3.6 V lithium
• Sampling rate: From 1 s
• Data capacity: 100,000 samples in non-volatile memory
• RTC accuracy: < 15 sec/day
• Calibration options: NVLAP / DAkkS
• Environmental limits: 0–5 bar abs.; 0–100% RH condensing
• Regulatory: UL and CE
