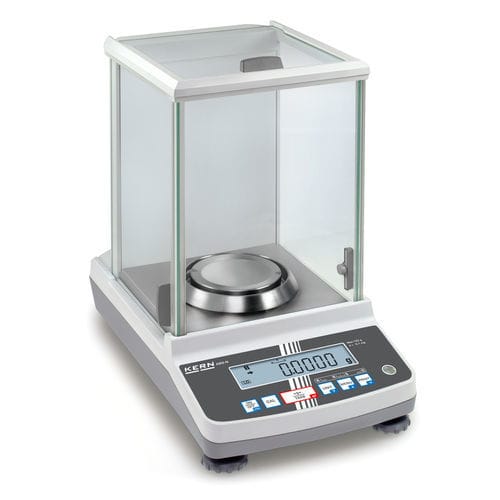

Analytical laboratory balance ACJ 80-4M

for pharmaciesfor scientific researchfor chemical industry

Overview
Analytical balance with Single-Cell weighing system, model ACJ 80-4M. Optional conformity assessment (calibration) ex works.

Key features

• Automatic internal adjustment when temperature change ≥ 2 °C or time-controlled every 4 h
• Dosage aid: high stability mode and selectable filter settings
• Recipe weighing and documentation with combined tare/print function; ingredients numbered and printed with number and nominal weight
• Automatic data output to PC/printer each time the balance is steady
• Programmable 4-digit identification number printed on calibration protocol
• Protective working cover included

Applications

• Pharmacies
• Food analysis
• Environmental analysis
• Chemical industry
• Research and development

Technical data (summary)
Weighing capacity [Max]: 82 g
Readability [d]: 0.0001 g
Verification scale interval [e]: 0.001 g
Units: g, mg
Minimum weight [Min]: 0.01 g
Linearity: ± 0.0003 g
Reproducibility: 0.0002 g
Stabilization time: 3 s

Technical specifications

• Model: ACJ 80-4M
• Weighing capacity (Max): 82 g
• Readability (d): 0.0001 g
• Verification scale interval (e): 0.001 g
• Units: g, mg
• Minimum weight (Min): 0.01 g
• Linearity: ± 0.0003 g
• Reproducibility: 0.0002 g
• Stabilization time: 3 s
• Tolerance weighing: yes (visual)
• Interfaces: RS-232 (standard), USB-Device
• Adjustment options: internal calibration (automatic), internal weight (manual)
• Recommended adjustment weight: 80 g (E2)
• Ambient temperature: 10 °C – 30 °C
• Weighing pan diameter (Ø): 91 mm
• Draft shield material: glass
• Housing material: cast aluminium, plastic
• Housing dimensions (W×D×H): 213×333×338 mm
• Weighing plate material: stainless steel
• Net weight approx.: 7 kg
• Construction type: single-range balance
• GTIN / EAN: 4045761235670
