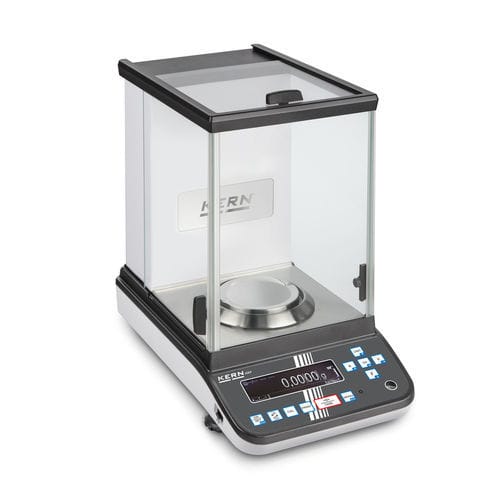

Analytical laboratory balance ABP 200-5M

for laboratorybenchtopwith digital display

Product description

• This new generation of analytical balances combines the highest level of precision with large weighing ranges. Thanks to the new Single-Cell Generation, the weighing result is displayed in a fraction of the time with comparable models. Together with the intuitively structured menu, this means that you can work efficiently and rapidly.
• Navigation pad for quick navigating through the menus.
• Automatic internal adjustment in the case of a change in temperature ≥ 1 °C or time-controlled every 4 h, guaranteeing high degree of accuracy and making the balance independent of its location of use.
• The minimum weight of sample can be manually stored in the device or automatically calculated. For weighings below this value, the balance issues a warning message.
• Dosage aid: High stability mode and other filter settings can be selected.
• Simple recipe weighing and documenting with a combined tare/print function. Ingredients for the recipe are numbered automatically and printed out with their corresponding number and nominal weight.
• Individual user settings can be stored for up to 10 users: user name/number (can be printed or added to each record), password, menu language, user profiles, barcode access to user settings, guest mode for unlogged users, and authorization levels (e.g. balance adjustment, changing settings, conditioning or modification of a recipe only by authorized persons).
• Interfaces: RS-232 and USB (device) for transferring weighing data and USB (host) to connect a USB keyboard for easy capture of item numbers, recipes and menu navigation.
• U.S. FDA 21 Part 11: assists in data integrity (e.g. weighing result, sample ID, user name, scales ID, ...).
• Menu languages: DE, EN.
• Automatic data output to the PC/printer each time the balance is steady.

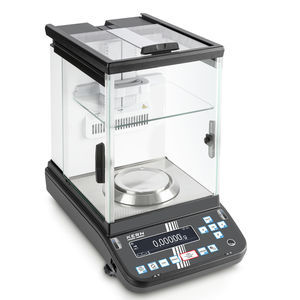

• Large glass draught shield with 3 sliding doors for easy access to the items being weighed.

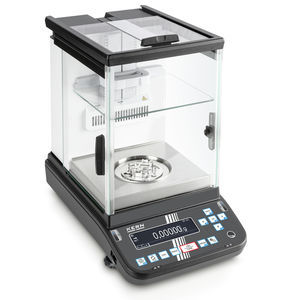

• Multi-function weighing plate included with delivery; minimises effect of air currents and improves stabilisation time and repeatability; allows fixing of samples, sample paper, PCR containers, micro centrifuge tubes and other protruding items.
• ABP 200-5M: Erlenmeyer flask holder included with delivery.
• Protective working cover included with delivery.

Applications

• Pharmaceutical applications
• Equality control
• Research and development
• Chemical industry
• Industry and production

Technical data (summary)
Weighing capacity [Max]: 220 g
Weighing capacity [Max] (ct): 1100 ct
Readability [d]: 0,00001 g (0.01 mg)
Readability carat [d] (ct): 0,0001 ct
Verification scale interval [e]: 0,001 g
Units: g, mg, ct
Conformity assessment possible ex works: yes
Minimum weight [Min]: 0,001 g
Linearity: ± 0,0001 g
Reproducibility: 0,000015 g; 0,00003 g; 0,00005 g
Stabilization time: 8 s
Tolerance weighing: yes (visual signal type)
Interfaces: RS-232 standard, USB-Host/Master, USB-Device
Adjustment options: Internal calibration (automatic), Adjusting with internal weight (manual)
Ambient temperature: 10 °C – 30 °C
Dimensions weighing surface (Ø): 91 mm
Material draught shield: glass
Material housing: cast aluminium, plastic
Dimension housing (W×D×H): 213×367×345 mm
Material weighing plate: stainless steel
Net weight approx.: 8 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761250307

Characteristics / technical specifications

• Model / Commercial designation: ABP 200-5M
• Product family: ABP (Analytical balances)
• Weighing principle: single cell technology (force compensation variant)
• Weighing capacity: 220 g (also shown as 1100 ct)
• Readability: 0.00001 g (0.01 mg) / carat readability 0.0001 ct
• Verification scale interval: 0.001 g
• Minimum sample weight: 0.001 g (can be stored or auto-calculated)
• Stabilisation time: 8 s
• Linearity: ± 0.0001 g
• Reproducibility options: 0.000015 g; 0.00003 g; 0.00005 g
• Interfaces: RS-232, USB Host (keyboard), USB Device
• Internal automatic adjustment (temperature change ≥ 1 °C or every 4 h) and manual adjustment with internal weight
• Included accessories: multi-function weighing plate, Erlenmeyer flask holder, protective working cover, draught shield (glass)
• Ambient operating temperature: 10 °C – 30 °C
• Housing dimensions (W×D×H): 213×367×345 mm; weighing surface Ø: 91 mm; net weight ≈ 8 kg
• Materials: weighing plate stainless steel; housing cast aluminium/plastic
• Compliance features: GLP/ISO protocol output, user management, U.S. FDA 21 Part 11 support, recipe/formulation memory and printing
