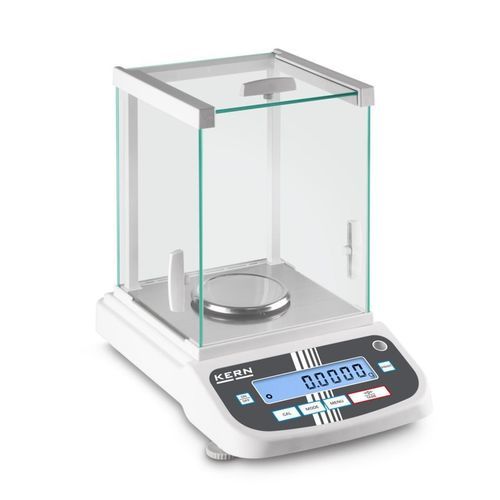

Analytical laboratory balance ADB 100-4

for teachingfor laboratorybenchtop

Product family
ADB

Short description
Single-range analytical balance ADB 100-4 with 120 g capacity and 0.0001 g readability; external CAL adjustment and three‑door glass draught shield for routine laboratory weighing.

Description

• CAL adjusting program for fast setting of balance accuracy using an external test weight (recommended: 120 g E2).
• Bubble level and adjustable levelling feet supplied as standard for precise levelling.
• Large glass draught shield with 3 sliding doors for easy access to samples.
• Intuitive 6-key operation and RS-232 interface for data transfer.

Applications

• Educational institutions
• Laboratory applications
• Quality control

Technical data
Weighing capacity [Max]: 120 g
Weighing capacity [Max] (ct): 600 ct
Readability [d]: 0.0001 g
Readability carat [d] (ct): 0.001 ct
Units: g, ct, lb, oz
Linearity: ± 0.0004 g
Reproducibility: 0.0002 g
Stabilization time: 4 s
Interfaces: RS-232 (standard)
Adjustment options: external calibration (CAL); recommended adjusting weight: 120 g (E2)
Ambient temperature: 10 °C – 30 °C
Dimensions weighing surface (Ø): 90 mm
Material draught shield: glass
Material housing: plastic
Dimensions housing (W×D×H): 230×310×330 mm
Material weighing plate: stainless steel
Net weight approx.: 4.4 kg
Construction type: Single-range balance
GTIN/EAN: 4045761203228

Characteristics / technical specifications

• Model: ADB 100-4
• Brand: KERN & SOHN
• Weighing capacity: 120 g
• Readability: 0.0001 g
• Stabilization time: 4 s
• Linearity: ± 0.0004 g
• Reproducibility: 0.0002 g
• Units: g, ct, lb, oz
• Weighing pan diameter: 90 mm
• Draught shield: glass (3 sliding doors)
• Housing material: plastic
• Weighing plate material: stainless steel
• Interfaces: RS-232 (standard)
• Adjustment: external test weight (recommended 120 g (E2))
• Ambient temperature range: 10 °C – 30 °C
• Dimensions (W×D×H): 230×310×330 mm
• Net weight: approx. 4.4 kg
• GTIN/EAN: 4045761203228
