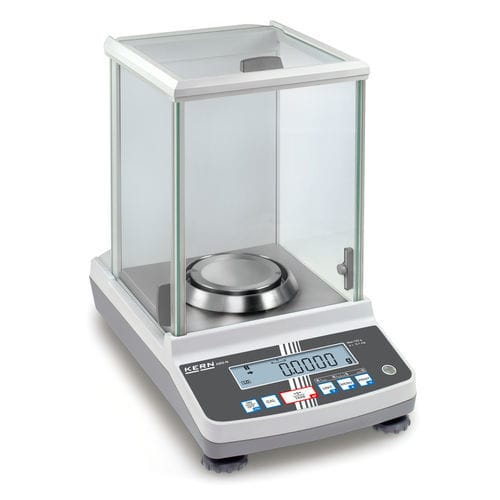

Digital laboratory balance ACJ 200-4M

analyticalfor scientific researchfor chemical industry

Description

• Analytical balance with Single-Cell weighing system. Verification (legal-for-trade / pharmaceutical / medical / official use) available on request; when ordered the device is tested and stamped by the metrological service.

Key features

• Automatic internal adjustment on temperature change ≥ 2 °C or time-controlled every 4 h for consistent accuracy and location independence.
• Dosage aid: high-stability mode and selectable filter settings.
• Recipe/compound weighing and documentation via combined tare/print function; ingredients are automatically numbered and printed with number and nominal weight.
• Automatic data output to PC/printer each time the balance is steady.
• Identification number: 4 digits, freely programmable, printed on calibration protocol.
• Protective working cover included.

Technical Data (table)
Weighing capacity [Max]: 220 g
Weighing capacity [Max] (ct): 1100 ct
Readability [d]: 0.0001 g
Readability carat [d] (ct): 0.001 ct
Verification scale interval [e]: 0.001 g
Units: g, mg, ct
Conformity assessment possible ex works: yes
Minimum weight [Min]: 0.01 g
Linearity: ± 0.0003 g
Reproducibility: 0.0002 g
Stabilization time: 3 s
Tolerance weighing: yes (visual)
Interfaces: RS-232 standard, USB-Device
Adjustment options: Internal calibration (automatic), Adjusting with internal weight (manual)
Recommended adjusting weight: 200 g (E2)
Ambient temperature: 10 °C – 30 °C
Dimensions weighing surface (Ø): 91 mm
Material draught shield: glass
Material housing: cast aluminium, plastic
Dimension housing (W×D×H): 213×333×338 mm
Material weighing plate: stainless steel
Net weight approx.: 7 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761235656

Note

• For devices requiring verification (conformity assessment according to NAWI 2014/31/EU), initial verification must be ordered with the device; initial verification after delivery is not possible.
• If verification is required, provide the full address of the intended place of use when ordering.

Applications

• Chemists
• Food analysis
• Environmental analysis
• Chemical industry
• Research and development

Characteristics / technical specifications

• Model: ACJ 200-4M
• Weighing capacity (max): 220 g
• Readability: 0.0001 g
• Verification scale interval: 0.001 g
• Minimum weight: 0.01 g
• Linearity: ± 0.0003 g
• Reproducibility: 0.0002 g
• Stabilization time: 3 s
• Interfaces: RS-232, USB (device)
• Adjustment: internal automatic calibration; manual adjusting with internal weight
• Weighing plate diameter: 91 mm (stainless steel)
• Housing dimensions (W×D×H): 213×333×338 mm
• Net weight approx.: 7 kg
• Material draught shield: glass
• Material housing: cast aluminium, plastic
• GTIN / EAN: 4045761235656
