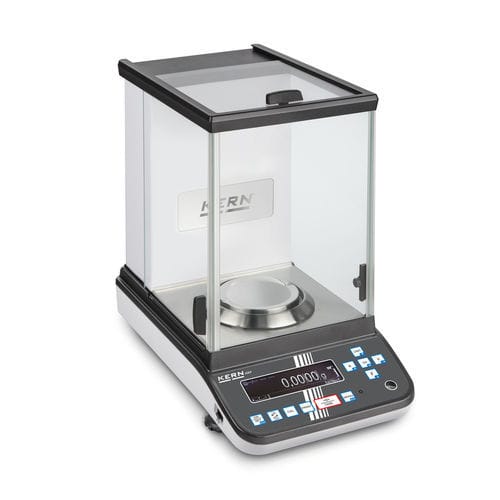

Analytical microbalance ABP 100-5M

for chemical industryfor the pharmaceutical industryfor laboratory

Overview

• Premium single-range semi-micro analytical balance with extremely high resolution (readability 0.00001 g) and Single-Cell Generation for very rapid and stable weighing results.
• Intuitively structured menu and navigation pad for quick operation.
• Automatic internal adjustment triggered by temperature change ≥ 1 °C or time-controlled every 4 h to ensure accuracy independent of installation location.
• Minimum sample weight can be stored manually or calculated automatically; the balance issues a warning for weighings below this value.
• Dosage aid with high-stability mode and selectable filter settings.
• Simple recipe/formula weighing and documentation with combined tare/print function; ingredients are automatically numbered and printed with nominal weight.
• Individual user settings for up to 10 users (user name/number, password, menu language, user profiles, barcode access to user settings, guest mode, differentiated authorisations).
• Interfaces: RS-232 and USB (device) for data transfer; USB (host) to connect a USB keyboard for item numbers, recipes and easier menu navigation.
• U.S. FDA 21 CFR Part 11 support for data integrity (weighing result, sample ID, user name, scale ID, ...).
• Menu languages: DE, EN.
• Automatic data output to PC/printer each time the balance is steady.
• Large glass draught shield with 3 sliding doors for easy access to the items being weighed.

Included

• Multi-function weighing plate to minimise air current effects and improve stabilization time and repeatability.
• Protective working cover.

Technical data (table)
Weighing capacity [Max]: 135 g
Weighing capacity [Max] (ct): 675 ct
Readability [d]: 0,00001 g
Readability carat [d] (ct): 0,0001 ct
Verification scale interval [e]: 0,001 g
Units: g, mg, ct
Conformity assessment possible ex works: yes
Minimum weight [Min]: 0,001 g
Linearity: ± 0,0001 g
Reproducibility: 0,00005 g
Stabilization time: 8 s
Tolerance weighing: yes (visual signal)
Interfaces: RS-232 standard, USB-Host/Master, USB-Device
Adjustment options: Internal calibration (automatic), Adjusting with internal weight (manual)
Ambient temperature: 10 °C – 30 °C
Dimensions weighing surface (Ø): 91 mm
Material draught shield: glass
Material housing: cast aluminium, plastic
Dimension housing (W×D×H): 213×367×345 mm
Material weighing plate: stainless steel
Net weight approx.: 8 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761250314

Applications

• Pharmaceutical applications
• Equality control
• Research and development
• Chemical industry
• Industry and production

Technical specifications

• Model series: ABP
• Model: ABP 100-5M
• Weighing capacity (max): 135 g
• Readability: 0,00001 g (0.01 mg)
• Verification scale interval: 0,001 g
• Minimum weight: 0,001 g
• Linearity: ± 0,0001 g
• Reproducibility: 0,00005 g
• Stabilization time: 8 s
• Weighing pan diameter: 91 mm
• Draught shield material: glass (3 sliding doors)
• Housing: cast aluminium, plastic
• Weighing plate: stainless steel
• Net weight: approx. 8 kg
• Interfaces: RS-232, USB-Host, USB-Device
• Adjustment: automatic internal calibration and manual internal weight adjustment
• Operating ambient temperature: 10 °C – 30 °C
• GTIN/EAN: 4045761250314
