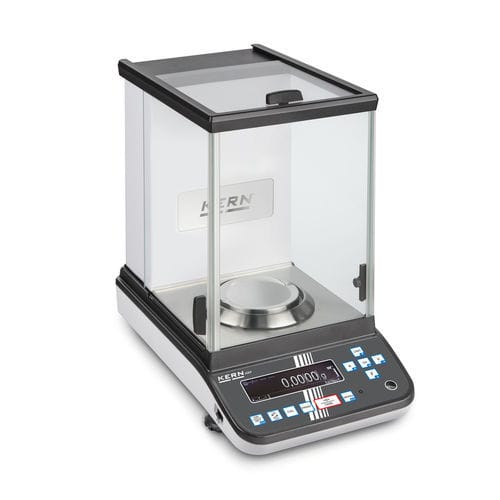

Analytical laboratory balance ABP 300-4M

for scientific researchfor the pharmaceutical industryfor chemical industry

Overview

• Analytical balance with Single-Cell weighing technology for very fast stabilization and stable results.
• 320 g maximum capacity with 0.0001 g readability (0.001 ct); verification scale interval e = 0.001 g.
• Intuitive menu with navigation pad and user profiles for up to 10 users (user name/number, password, menu language, permissions), barcode access and guest mode.
• Automatic internal adjustment on temperature changes ≥ 1 °C or time-controlled every 4 h; internal and manual adjustment options.
• Minimum sample weight can be stored manually or calculated automatically; warning for weights below this limit.
• Dosage support: high stability mode and selectable filter settings; combined tare/print for recipe weighing with automatic ingredient numbering.
• Interfaces: RS-232, USB (Device) for data transfer and USB (Host) for keyboard; automatic data output to PC/printer after stabilization.
• Large glass draught shield with 3 sliding doors, multifunction weighing plate and protective cover included.
• Support for U.S. FDA 21 CFR Part 11 features (data integrity: result, sample ID, user, scale ID).

Technical Data (summary)
Weighing capacity [Max]: 320 g
Weighing capacity [Max] (ct): 1600 ct
Readability [d]: 0,0001 g
Readability carat [d] (ct): 0,001 ct
Verification scale interval [e]: 0,001 g
Units: g, mg, ct
Conformity assessment possible ex works: yes
Minimum weight [Min]: 0,01 g
Linearity: ± 0,0003 g
Reproducibility: 0,00015 g
Stabilization time: 2 s
Tolerance weighing: yes (visual signal)
Interfaces: RS-232 standard, USB-Host/Master, USB-Device
Adjustment options: Internal calibration (automatic), Adjusting with internal weight (manual)
Ambient temperature: 10 °C – 30 °C
Dimensions weighing surface (Ø): 91 mm
Material draught shield: glass
Material housing: cast aluminium, plastic
Dimension housing (W×D×H): 213×367×345 mm
Material weighing plate: stainless steel
Net weight approx.: 8 kg
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761213920


Applications

• Pharmaceutical weighing and formulation
• Quality control and equality checks
• Research & development laboratories
• Chemical industry processes
• Production and industrial weighing tasks

Specifications

• Weighing principle: Single-Cell technology (new generation)
• Maximum capacity: 320 g; readability 0.0001 g (0.001 ct)
• Stabilization time: approx. 2 s
• Minimum weight: 0.01 g
• Linearity: ± 0.0003 g; reproducibility: 0.00015 g
• Weighing pan Ø 91 mm, stainless steel, multifunction plate included
• Glass draught shield with 3 sliding doors; protective working cover included
• User management, recipe/ formulation functions, tolerance weighing, density determination and piece counting options
• Interfaces and connectivity: RS-232, USB-Host, USB-Device; USB keyboard support
• Supports data integrity functions in line with FDA 21 CFR Part 11
• Dimensions (W×D×H): 213×367×345 mm; net weight approx. 8 kg
• GTIN / EAN: 4045761213920
