Electronic laboratory balance ABP 200-5DAM
analyticalfor laboratorybenchtop

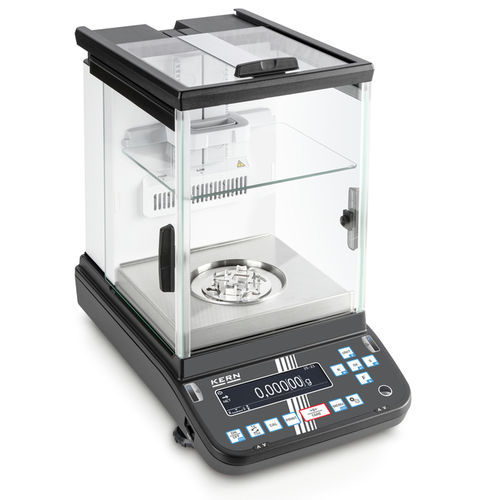

Electronic laboratory balance - ABP 200-5DAM - KERN & SOHN - analytical / for laboratory / benchtop
Electronic laboratory balance - ABP 200-5DAM - KERN & SOHN - analytical / for laboratory / benchtop
Electronic laboratory balance - ABP 200-5DAM - KERN & SOHN - analytical / for laboratory / benchtop - image - 2
Electronic laboratory balance - ABP 200-5DAM - KERN & SOHN - analytical / for laboratory / benchtop - image - 3
Electronic laboratory balance - ABP 200-5DAM - KERN & SOHN - analytical / for laboratory / benchtop - image - 4
Electronic laboratory balance - ABP 200-5DAM - KERN & SOHN - analytical / for laboratory / benchtop - image - 5
Electronic laboratory balance - ABP 200-5DAM - KERN & SOHN - analytical / for laboratory / benchtop - image - 6
Electronic laboratory balance - ABP 200-5DAM - KERN & SOHN - analytical / for laboratory / benchtop - image - 7
Add to favorites
Compare this product
Go to the KERN & SOHN website for more information

Characteristics

Technology
electronic, analytical
Applications
for laboratory
Configuration
benchtop
Display type
with digital display
Function
with internal calibration weight, automatic
Options and accessories
USB
Weighing capacity

Max.: 220 g
(7.76 oz)

Min.: 102 g
(3.6 oz)

Readability

0.01 mg, 0.1 mg
(0 oz, 0 oz)

Plate size

9.1 cm
(3.6 in)

Width

21.3 cm
(8.4 in)

Length

36.7 cm
(14.4 in)

Depth

34.5 cm
(13.6 in)

Description

Short description
  • Premium analytical balance with automatic sliding doors and the latest Single-Cell Generation for extremely rapid, stable weighing results. Integrated ioniser included as standard. Intuitively structured menu for efficient work.


Main features
  • New Single-Cell Generation: significantly faster display of weighing results compared with comparable models.
  • Three automatic sliding doors operated by sensors; memory function stores how far the sliding doors have been opened to prevent contamination and accelerate processes; gentle push function to open/close doors automatically.
  • Integrated ioniser as standard to reduce static effects.
  • Internal draft shield (adjustable) and large glass draught shield with 3 sliding doors to guarantee maximum stability of weight readings; internal draft shield minimises air current effects inside the weighing chamber.
  • Memory function for storing sliding door positions and other data; menu languages DE and EN.
  • Navigation pad for quick navigation through menus.
  • Automatic internal adjustment in case of temperature change ≥ 1 °C or time-controlled every 4 h; ensures independence from location of use.
  • Minimum sample weight can be stored manually or calculated automatically; warning message for weighings below the minimum weight.
  • Dosage aid with selectable high stability mode and various filter settings.
  • Simple recipe weighing and documenting with combined tare/print function; ingredients are numbered automatically and printed with nominal weights.
  • Individual user settings for up to 10 users (user name/number, password, menu language, user profiles, barcode access to user settings, guest mode, authorisations).
  • Interfaces: RS-232 and USB (device) for transferring weighing data; USB (host) to connect a USB keyboard for item numbers, recipes and easier menu navigation.
  • U.S. FDA 21 Part 11 support: assists in data integrity (for example weighing result, sample ID, user name, scales ID).
  • Automatic data output to PC/printer each time the balance is steady.
  • Multi-function weighing plate included with delivery to minimise air current effects and improve stabilisation time and repeatability; allows fixing of samples, sample paper, PCR containers, micro centrifuge tubes and other protruding items for easy weighing.
  • Protective working cover included with delivery.


Applications
  • Laboratory applications
  • Plastics technology
  • Time-based recording


Technical specifications
  • Brand: KERN
  • Weighing capacity [Max]: 102 g; 220 g
  • Weighing capacity [Max] (ct): 1100 ct
  • Readability [d]: 0,00001 g; 0,0001 g
  • Readability carat [d] (ct): 0,0001 ct; 0,001 ct
  • Verification scale interval [e]: 0,001 g; 0,001 g
  • Units: g, mg, ct
  • Conformity assessment possible ex works: yes
  • Minimum weight [Min]: 0,001 g
  • Linearity: ± 0,0001 g; 0,0002 g
  • Reproducibility: 0,00005 g; 0,0001 g
  • Stabilization time: 8 s; 2 s
  • Tolerance weighing: yes (visual signal)
  • Interfaces: RS-232 standard, USB-Host/Master, USB-Device
  • Adjustment options: Internal calibration (automatic), Adjusting with internal weight (manual)
  • Ambient temperature: 10 °C – 30 °C
  • Dimensions weighing surface (Ø): 91 mm
  • Material draught shield: glass
  • Material housing: cast aluminium, plastic
  • Dimension housing (W×D×H): 213×367×345 mm
  • Material weighing plate: stainless steel
  • Net weight approx.: 8 kg
  • Construction type of the scale: Multi-division balance
  • GTIN/EAN number: 4045761312005
