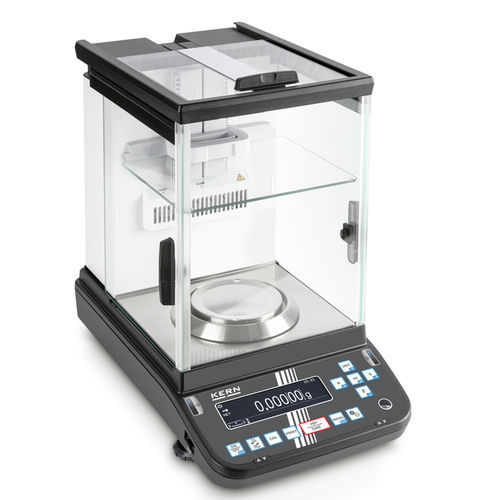

Analytical laboratory balance ABP 300-4AM

for laboratorybenchtopautomatic

Description
The ABP 300-4AM analytical balance uses Single-Cell weighing technology to deliver rapid, repeatable results within a 320 g capacity. It features three sensor-controlled automatic sliding doors, an integrated ioniser, an intuitive navigation pad and internal automatic adjustment for stable operation across typical laboratory and industrial conditions.

Key features

• Memory function for sliding-door positions; Push function allows gentle-touch opening/closing to reduce contamination and speed workflows
• Adjustable internal draught shield (3 sliding doors) for maximum weighing stability
• Navigation pad for fast menu operation
• Automatic internal adjustment when temperature changes ≥ 1 °C or time-controlled every 4 h
• Minimum sample weight: storable manually or calculated automatically; warning on underweight
• Dosage aid with selectable high-stability mode and filter settings
• Recipe/formulation weighing and documentation with combined tare/print; components auto-numbered and printed with nominal weight
• Individual user settings for up to 10 users (name/number, password, menu language, profiles); barcode access and guest mode; authorisations for adjustments and recipe edits
• Interfaces: RS-232 and USB (Device) for data transfer; USB (Host) for external keyboard entry
• Support for U.S. FDA 21 CFR Part 11 to assist data integrity (examples: weighing result, sample ID, user name, scale ID)
• Menu languages: DE, EN
• Automatic data output to PC/printer each time the balance is steady

Technical specifications

• Weighing capacity (Max): 320 g
• Weighing capacity (Max) (ct): 1600 ct
• Readability [d]: 0.0001 g
• Readability carat [d] (ct): 0.001 ct
• Verification scale interval [e]: 0.001 g
• Units: g, mg, ct
• Conformity assessment possible ex works: yes
• Minimum weight [Min]: 0.01 g
• Linearity: ±0.0003 g
• Reproducibility: 0.00015 g
• Stabilization time: 2 s
• Checkweighing: yes (visual signal)
• Interfaces: RS-232, USB-Host/Master, USB-Device
• Adjustment options: internal calibration (automatic), adjustment with internal weight (manual)
• Ambient temperature: 10 °C – 30 °C
• Weighing pan Ø: 91 mm
• Material draught shield: glass
• Material housing: cast aluminium, plastic
• Housing dimensions (W×D×H): 213×367×345 mm
• Weighing plate material: stainless steel
• Net weight approx.: 8 kg
• Construction type: single-range balance
• GTIN / EAN: 4045761312043

Applications

• Laboratory weighing and quality control
• Plastics and material technology processes
• Formulation and time-based recording

Included

• Protective working cover included
