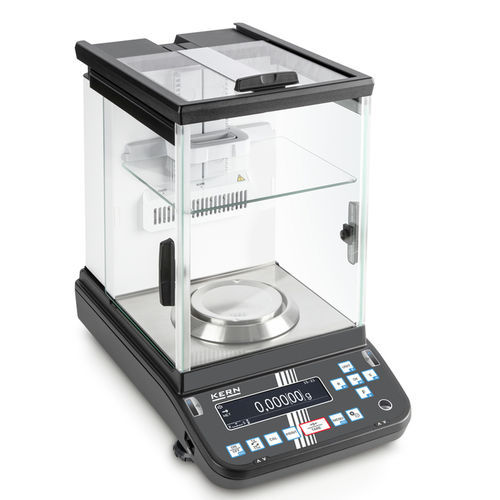

Analytical laboratory balance ABP 200-4AM

for laboratorywith internal calibration weightUSB

Description

• Analytical balance designed for laboratory use combining Single-Cell weighing technology with a 220 g capacity and 0.0001 g readability for fast, stable results.
• Large glass draught shield with three sensor-controlled automatic sliding doors and integrated ionizer as standard to reduce electrostatic effects.
• Memory function for sliding-door positions to reduce contamination risks and speed up repetitive procedures; gentle push activation opens/closes doors automatically.
• Adjustable internal draught shield and high-stability dosing modes with selectable filters for precise dosing and formulation work.
• Automatic internal adjustment on temperature change ≥ 1 °C or time-controlled every 4 h; manual adjustment possible with internal weight.
• Recipe/ formulation support with combined tare/print function; automatic numbering and printing of components.
• Multi-user management for up to 10 users (name/ID, password, menu language, profiles), guest mode and configurable authorizations; barcode access to user settings supported.
• Interfaces: RS-232 and USB-Device for data transfer; USB-Host for keyboard/peripherals. Automatic data output to PC/printer when balance is steady.
• Support for U.S. FDA 21 CFR Part 11 features to assist data integrity (weighing result, sample ID, user, scale ID).
• Protective working cover included; menu languages: DE, EN.

Technical Data (summary)
Weighing capacity [Max] : 220 g
Weighing capacity [Max] (ct) : 1100 ct
Readability [d] : 0.0001 g
Readability carat [d] (ct) : 0.001 ct
Verification scale interval [e] : 0.001 g
Units : g, mg, ct
Conformity assessment possible ex works : yes
Minimum weight [Min] : 0.01 g
Linearity : ± 0.0002 g
Reproducibility : 0.0001 g
Stabilization time : 2 s
Tolerance weighing : yes (visual signal)
Interfaces : RS-232 standard, USB-Host/Master, USB-Device
Adjustment options : Internal calibration (automatic), adjusting with internal weight (manual)
Ambient temperature : 10 °C – 30 °C
Dimensions weighing surface (Ø) : 91 mm
Material draught shield : glass
Material housing : cast aluminium, plastic
Dimension housing (W×D×H) : 213×367×345 mm
Material weighing plate : stainless steel
Net weight approx. : 8 kg
Construction type of the scale : Single-range balance
GTIN/EAN number : 4045761312036

Features / technical specifications

• Model / series: ABP 200-4AM
• Weighing capacity (max): 220 g (1100 ct)
• Readability: 0.0001 g (0.001 ct)
• Verification scale interval (e): 0.001 g
• Minimum weight: 0.01 g
• Linearity: ±0.0002 g
• Reproducibility: 0.0001 g
• Stabilisation time: 2 s
• Units available: g, mg, ct
• Weighing surface diameter: 91 mm (stainless steel)
• Draught shield: large glass with 3 automatic sensor-controlled sliding doors
• Ionizer: integrated as standard
• Interfaces: RS-232, USB-Host (Master), USB-Device
• Adjustment: internal automatic calibration; manual adjustment with internal weight
• Ambient operating temperature: 10 °C – 30 °C
• Housing material: cast aluminium and high-grade plastic
• Dimensions (W×D×H): 213 × 367 × 345 mm
• Net weight: approx. 8 kg
• Weighing principle: Single-Cell technology (advanced force compensation)
• Functions: memory for PLU/recipes and door position, dosage aid, recipe weighing & documentation, multi-user management, GLP/ISO logging, FDA 21 CFR Part 11 support features
• Accessories included: protective working cover
• Options: conformity assessment ex works, accredited calibration available
• GTIN / EAN: 4045761312036
