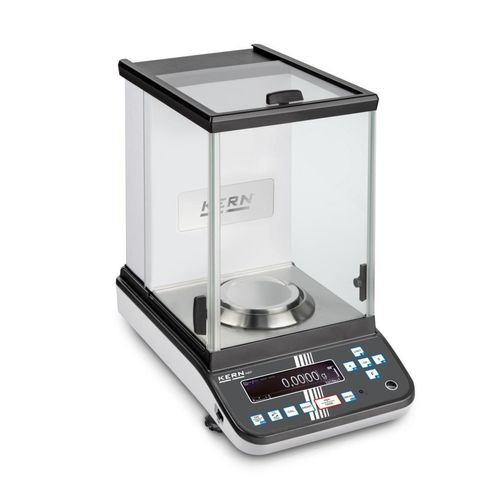

Analytical laboratory balance ABP 200-4M

for laboratorybenchtopwith digital display

Overview
Analytical balance with the latest Single-Cell Generation for extremely rapid, stable weighing results and an intuitive menu for efficient operation.

Key features

• Single-Cell Generation for extremely rapid, stable weighing results
• Navigation pad for quick menu navigation
• Automatic internal adjustment on temperature change ≥ 1 °C or time-controlled every 4 h
• Minimum sample weight storable manually or calculated automatically; warning for weighings below this value
• Dosage aid: high stability mode and multiple filter settings
• Recipe weighing and documentation with combined tare/print function; components automatically numbered and printed with nominal weight
• Individual user settings for up to 10 users (name/number, password, menu language, profiles, barcode access, guest mode, authorisations)
• Interfaces: RS-232 and USB (Device) for transferring weighing data; USB (Host) to connect a USB keyboard
• Support for U.S. FDA 21 CFR Part 11 to assist data integrity (weighing result, sample ID, user name, scale ID, ...)
• Automatic data output to PC/printer each time the balance is steady
• Large glass draught shield with 3 sliding doors for easy access
• Multi-function weighing plate included (minimises air current effects and improves stabilization time and repeatability; allows fixing of protruding samples)
• Protective working cover included

Technical Data (summary)
Weighing capacity [Max]: 220 g
Weighing capacity [Max] (ct): 1100 ct
Readability [d]: 0,0001 g
Readability carat [d] (ct): 0,001 ct
Verification scale interval [e]: 0,001 g
Units: g, mg, ct
Conformity assessment possible ex works: yes
Minimum weight [Min]: 0,01 g
Linearity: ± 0,0002 g
Reproducibility: 0,0001 g
Stabilization time: 2 s
Tolerance weighing: yes (visual signal)
Interfaces: RS-232 standard, USB-Host/Master, USB-Device
Adjustment options: Internal calibration (automatic), adjustment with internal weight (manual)
Ambient temperature: 10 °C – 30 °C
Dimensions weighing surface (Ø): 91 mm
Material draught shield: glass
Material housing: cast aluminium, plastic
Dimension housing (W×D×H): 213×367×345 mm
Material weighing plate: stainless steel
Net weight approx.: 8 kg
Construction type: Single-range balance
GTIN/EAN number: 4045761213913

Specifications

• Model: ABP 200-4M
• Weighing capacity (max): 220 g
• Readability: 0,0001 g (0,001 ct)
• Verification interval (e): 0,001 g
• Minimum weight: 0,01 g
• Linearity: ± 0,0002 g
• Reproducibility: 0,0001 g
• Stabilization time: 2 s
• Weighing units: g, mg, ct
• Interfaces: RS-232, USB-Host, USB-Device
• Adjustment: internal automatic calibration; internal weight manual adjustment
• Draught shield: glass, 3 sliding doors
• Weighing surface Ø: 91 mm; weighing plate material: stainless steel
• Housing: cast aluminium and plastic; dimensions (W×D×H): 213×367×345 mm
• Net weight: approx. 8 kg
• GTIN / EAN: 4045761213913
