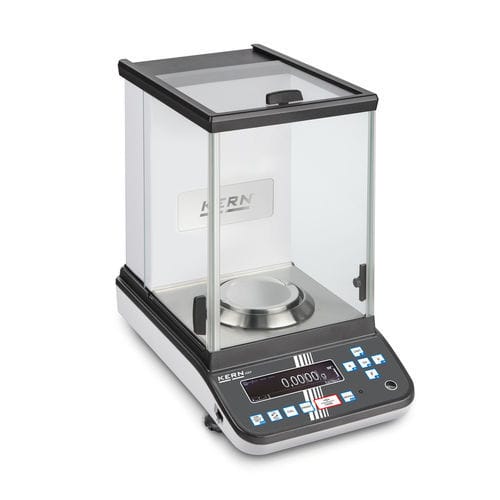

Analytical laboratory balance ABP 100-4M

for scientific researchfor the pharmaceutical industryfor chemical industry

Product family
ABP

Short description
Analytical balance ABP 100-4M with Single-Cell Generation delivering very fast, stable weighing results. Intuitive menu, multi-user management and multiple data interfaces make it suitable for laboratory, pharmaceutical and production environments.

Features

• Single-Cell Generation for rapid, stable results
• Navigation pad for quick menu operation
• Automatic internal adjustment on temperature change ≥ 1 °C or time-controlled every 4 h
• Minimum sample weight can be stored manually or calculated automatically; warning for weighings below this value
• Dosage aid with high stability mode and selectable filter settings
• Recipe and mixture weighing with combined tare/print function and automatic numbering of ingredients
• Individual user settings for up to 10 users: name/number, password, menu language, user profiles, barcode access, guest mode, authorization control
• Interfaces: RS-232 and USB (Device) for data transfer; USB (Host) to connect a keyboard
• Support for U.S. FDA 21 CFR Part 11 data integrity (weighing result, sample ID, user, scale ID)
• Automatic data output to PC/printer when balance is steady
• Large glass draught shield with 3 sliding doors and a multi-function weighing plate to reduce air influence and improve stabilization and repeatability
• Protective working cover included

Technical Data (summary)
Weighing capacity [Max]: 120 g
Weighing capacity [Max] (ct): 600 ct
Readability [d]: 0.0001 g
Readability carat [d] (ct): 0.001 ct
Verification scale interval [e]: 0.001 g
Units: g, mg, ct
Minimum weight [Min]: 0.01 g
Linearity: ± 0.0002 g
Reproducibility: 0.0001 g
Stabilization time: 2 s
Tolerance weighing: yes (visual signal)
Interfaces: RS-232 standard, USB-Host/Master, USB-Device
Adjustment options: Internal automatic calibration and manual adjustment with internal weight
Ambient temperature: 10 °C – 30 °C
Weighing surface diameter (Ø): 91 mm
Material draught shield: glass
Material housing: cast aluminium, plastic
Weighing plate material: stainless steel
Housing dimensions (W×D×H): 213×367×345 mm
Net weight approx.: 8 kg
Construction type: Single-range balance
GTIN / EAN: 4045761213890

Main fields of application

• Pharmaceutical applications
• Quality control
• Research and development
• Chemical industry
• Industry and production

Included with delivery

• Multi-function weighing plate
• Protective working cover

Technical specifications

• Weighing capacity (Max): 120 g
• Readability: 0.0001 g
• Verification scale interval: 0.001 g
• Minimum weight: 0.01 g
• Linearity: ± 0.0002 g
• Reproducibility: 0.0001 g
• Stabilization time: 2 s
• Units: g, mg, ct
• Interfaces: RS-232, USB-Host, USB-Device
• Adjustment: Internal automatic calibration and manual adjustment with internal weight
• Weighing surface diameter: 91 mm
• Materials: draught shield glass; weighing plate stainless steel; housing cast aluminium and plastic
• Dimensions (W×D×H): 213×367×345 mm
• Net weight approx.: 8 kg
• GTIN/EAN: 4045761213890
