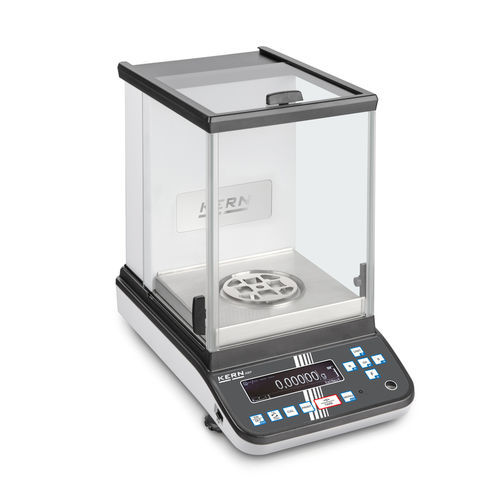

Analytical laboratory balance ABP 100-5DM

for laboratorywith internal calibration weightUSB

Short description
Analytical balance with Single-Cell Generation for extremely rapid, stable weighing results across multi-division ranges. Suitable for laboratory, quality control, research and production environments.

Key features

• Single-Cell Generation for faster stabilization and display of weighing results compared with comparable models.
• Navigation pad for quick menu operation.
• Automatic internal adjustment when temperature changes ≥ 1 °C or time-controlled every 4 h.
• Minimum sample weight can be stored manually or calculated automatically; balance issues a warning if the value is undershot.
• Dosage aid with high-stability mode and selectable filter settings.
• Recipe/formulation support with combined tare/print function; ingredients are auto-numbered and printed with nominal weight.
• Up to 10 user profiles with name/number, password, menu language and configurable permissions (access control for calibration, settings or formulations).
• Interfaces: RS-232 and USB (Device) for data transfer; USB (Host) to connect an external keyboard.
• Supports U.S. FDA 21 CFR Part 11 functions for data integrity (e.g. weighing result, sample ID, user, scale ID).
• Menu languages: DE, EN.
• Automatic data output to PC/printer each time the balance is steady.
• Large glass draught shield with three sliding doors for easy access.
• [d] = 0.0001 g: Multi-function weighing plate included to minimise air current effects and improve stabilization and repeatability; supports small containers and microtubes.
• Protective working cover included.

Technical data
Weighing capacity (Max): 52 g; 120 g
Weighing capacity (Max) (ct): 600 ct
Readability [d]: 0.00001 g; 0.0001 g
Readability carat [d] (ct): 0.0001 ct; 0.001 ct
Verification scale interval [e]: 0.001 g; 0.001 g
Units: g, mg, ct
Conformity assessment possible ex works: yes
Minimum weight [Min]: 0.001 g
Linearity: ±0.00005 g; 0.0002 g
Reproducibility: 0.00002 g; 0.0001 g
Stabilization time: 8 s; 2 s
Tolerance weighing: visual signal
Interfaces: RS-232, USB-Host/Master, USB-Device
Adjustment: Internal calibration (automatic); internal weight (manual)
Ambient temperature: 10 °C – 30 °C
Weighing surface (Ø): 91 mm
Draught shield material: glass
Housing material: cast aluminium, plastic
Housing dimensions (W×D×H): 213×367×345 mm
Weighing plate material: stainless steel
Net weight approx.: 8 kg
Construction type: Multi-division balance
GTIN/EAN: 4045761213937

Applications

• Pharmaceuticals
• Quality control
• Research and development
• Chemical industry
• Industrial production

Technical specifications

• Model: ABP 100-5DM
• Weighing ranges: 52 g and 120 g (multi-division)
• Readability: 0.00001 g and 0.0001 g
• Minimum weight: 0.001 g
• Weighing plate Ø: 91 mm; material: stainless steel
• Draught shield: glass, 3 sliding doors
• Interfaces: RS-232, USB-Host, USB-Device
• Calibration: internal automatic; manual adjustment with internal weight possible
• Housing: cast aluminium and plastic; dimensions: 213×367×345 mm
• Net weight: approx. 8 kg
• Operating temperature: 10 °C – 30 °C
• GTIN / EAN: 4045761213937
