Electronic microbalance ABP 200-5AM
analyticalfor laboratorybenchtop

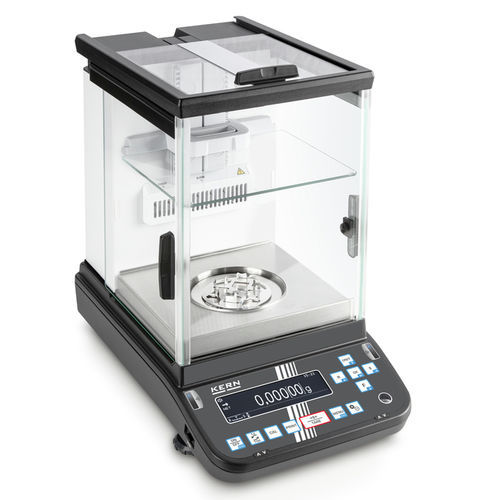

Electronic microbalance - ABP 200-5AM - KERN & SOHN - analytical / for laboratory / benchtop
Electronic microbalance - ABP 200-5AM - KERN & SOHN - analytical / for laboratory / benchtop
Electronic microbalance - ABP 200-5AM - KERN & SOHN - analytical / for laboratory / benchtop - image - 2
Electronic microbalance - ABP 200-5AM - KERN & SOHN - analytical / for laboratory / benchtop - image - 3
Add to favorites
Compare this product
Go to the KERN & SOHN website for more information

Characteristics

Technology
electronic, analytical
Applications
for laboratory
Configuration
benchtop
Display type
with digital display
Function
automatic, with internal calibration weight
Options and accessories
with printer, USB
Weighing capacity

220 g
(7.76 oz)

Readability

0.01 mg
(0 oz)

Plate size

9.1 cm
(3.6 in)

Width

21.3 cm
(8.4 in)

Length

34.5 cm
(13.6 in)

Depth

36.7 cm
(14.4 in)

Description

Product overview
  • Analytical balance ABP 200-5AM with Single-Cell weighing technology, 220 g capacity and 0.00001 g readability. Three automatic sliding doors, integrated ioniser and multifunction stainless-steel weighing pan (Ø 91 mm) included.
  • Automatic internal adjustment (temperature-change-triggered ≥ 1 °C or time-controlled every 4 h) and menu languages DE/EN.


Key features
  • Single-Cell Generation for faster, stable weighing results; stabilization time: 8 s.
  • Three sensor-operated automatic sliding doors with push function and memory for door positions to reduce contamination and speed processes.
  • Integrated ioniser and adjustable internal draft shield (large glass draught shield) to minimise air-current effects.
  • Minimum sample weight: 0.001 g (can be stored manually or calculated automatically) with warning for values below this threshold.
  • Dosage aid with high-stability mode and selectable filter settings; tolerance weighing (visual signal).
  • Recipe/formulation support with combined tare/print; automatic numbering and printing of ingredients.
  • User management for up to 10 users (name/number, password, menu language, profiles), barcode access, guest mode and authorization levels; U.S. FDA 21 CFR Part 11 support for data integrity.
  • Interfaces: RS-232, USB (Device) and USB (Host); automatic data output to PC/printer on stabilization.
  • Accessories included: multifunction weighing plate, Erlenmeyer flask holder, protective working cover.


Applications
  • Laboratory weighing and formulation
  • Plastics technology and material testing
  • Time-based recording and precision dosing


Technical specifications (excerpt)
  • Capacity (Max): 220 g
  • Capacity (Max) (ct): 1100 ct
  • Readability: 0.00001 g
  • Readability carat: 0.0001 ct
  • Verification scale interval [e]: 0.001 g
  • Units: g, mg, ct
  • Minimum weight: 0.001 g
  • Linearity: ± 0.0001 g
  • Reproducibility: 0.000015 g; 0.00003 g; 0.00005 g
  • Stabilization time: 8 s
  • Weighing pan Ø: 91 mm (stainless steel)
  • Interfaces: RS-232, USB-Host, USB-Device
  • Adjustment: internal automatic (temperature/time) and manual with internal weight
  • Ambient temperature: 10 °C – 30 °C
  • Dimensions (W×D×H): 213×367×345 mm
  • Net weight: approx. 9 kg
  • Construction type: Single-range balance
  • GTIN / EAN: 4045761312029
