Analytical laboratory balance ABP 200-5DM

for scientific researchfor the pharmaceutical industryfor chemical industry

Description

• New-generation analytical balance using Single-Cell technology for rapid, stable weighing across broad ranges (models with 102 g and 220 g capacity).
• Intuitive navigation pad for fast menu operation and efficient workflows.
• Automatic internal adjustment at temperature changes ≥ 1 °C or time-controlled every 4 h to maintain accuracy independent of installation site.
• Minimum sample weight can be stored manually or calculated automatically; the balance warns if a weighing is below this limit.
• Dosage support with high-stability mode and selectable filter settings to improve dosing operations.
• Recipe/ formulation mode with combined tare/print: components are auto-numbered and printed with nominal weights for traceable documentation.
• User management for up to 10 users (printable user name/number, passwords, menu language, profiles, barcode access, guest mode, and differentiated authorisations).
• Interfaces: RS-232 and USB-Device for data transfer; USB-Host to connect a keyboard. Automatic data output to PC/printer when the balance is stable.
• Support for U.S. FDA 21 CFR Part 11 to assist data integrity (weighing result, sample ID, user, scale ID, etc.).

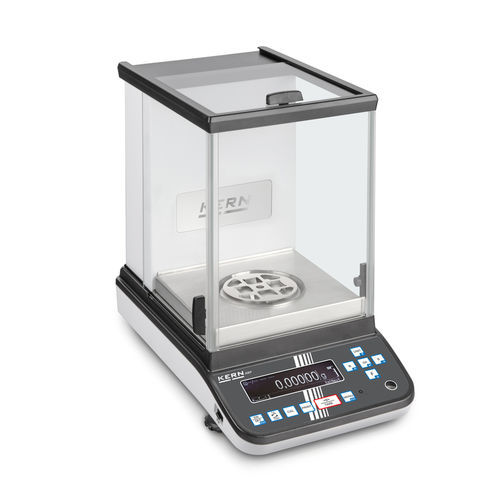

• Large glass draught shield with 3 sliding doors and a multifunction stainless-steel weighing plate (Ø 91 mm) to reduce air effects and allow secure weighing of small protruding samples.
• Protective working cover included.

Applications

• Pharmaceutical applications
• Quality control
• Research & development
• Chemical industry
• Industrial production

Technical specifications
Weighing capacity [Max]: 102 g; 220 g
Weighing capacity [Max] (ct): 1100 ct
Readability [d]: 0.00001 g; 0.0001 g
Readability carat [d] (ct): 0.0001 ct; 0.001 ct
Verification scale interval [e]: 0.001 g; 0.001 g
Units: g, mg, ct
Conformity assessment ex works: yes
Minimum weight [Min]: 0.001 g
Linearity: ± 0.0001 g; 0.0002 g
Reproducibility: 0.00005 g; 0.0001 g
Stabilization time: 8 s; 2 s
Tolerance weighing: yes (visual signal)
Interfaces: RS-232, USB-Host, USB-Device
Adjustment: Internal automatic calibration; internal weight manual adjustment
Operating temperature: 10 °C – 30 °C
Weighing pan Ø: 91 mm
Draught shield material: glass
Housing material: die-cast aluminium, plastic
Housing dimensions (W×D×H): 213 × 367 × 345 mm
Weighing pan material: stainless steel
Net weight approx.: 8 kg
Balance type: multi-division balance
GTIN / EAN: 4045761213944

Characteristics / technical features

• Single-Cell weighing technology for reduced stabilization times and stable results
• Multifunction weighing plate included to minimize air currents and fix small samples
• Large glass windshield with 3 sliding doors for easy sample access
• User profiles and password-protected authorisations (up to 10 users)
• Comprehensive connectivity: RS-232, USB Host/Device
• Support for FDA 21 CFR Part 11 for data integrity
• Functions: tare/print, recipe/formulation, piece counting, density determination, percent determination, Hold, Checkweighing
• Accessories available: protective cover, ionizer, interface cables, anti-vibration plates, density kit
