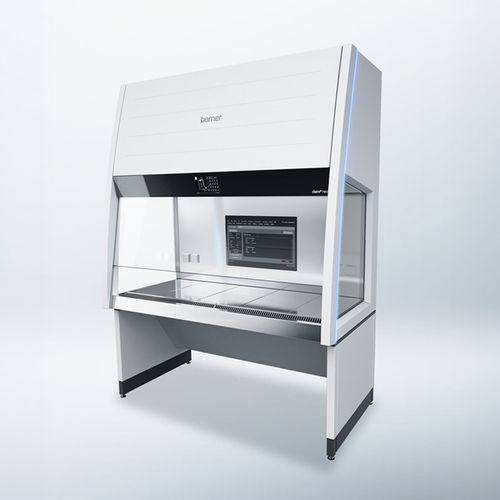

Class II microbiological safety cabinet claire® neo
for cytostaticsasepticmedical

Class II microbiological safety cabinet - claire® neo - Skan - for cytostatics / aseptic / medical
Class II microbiological safety cabinet - claire® neo - Skan - for cytostatics / aseptic / medical
Class II microbiological safety cabinet - claire® neo - Skan - for cytostatics / aseptic / medical - image - 2
Class II microbiological safety cabinet - claire® neo - Skan - for cytostatics / aseptic / medical - image - 3
Add to favorites
Compare this product

Characteristics

Class
class II
Applications
for cytostatics, aseptic, medical, for pharmaceutical laboratories, laboratory, for hospitals
ISO class
ISO class 5
Configuration
floor-standing
Certifications
EN 12469
Lighting
with LED light
Other characteristics
with HEPA filter
External width

1,200 mm, 1,500 mm, 1,800 mm, 2,100 mm
(47.24 in, 59.06 in, 70.87 in, 82.68 in)

External depth

800 mm
(31.5 in)

External height

1,947 mm, 2,317 mm
(76.65 in, 91.22 in)

Internal width

1,100 mm, 1,400 mm, 1,700 mm, 2,000 mm
(43.31 in, 55.12 in, 66.93 in, 78.74 in)

Internal depth

620 mm
(24.41 in)

Internal height

695 mm
(27.36 in)

Description

Overview
The claire® neo is a Class II safety workbench designed to provide personnel, product and environmental protection in laboratory and clinical settings. It combines proven airflow engineering with advanced filtration and control systems to support aseptic handling and contaminant containment while complying with relevant standards.

Applications
  • Biotech & Life Sciences
  • Laboratory & Research
  • Hospital & Pharmacy
  • Cytostatic production and aseptic compounding


Protection & Standards
  • Protection categories: Personal protection, Product protection, Environmental protection
  • Standards: DIN EN 12469, DIN EN 12980
  • Filter type: HEPA 14
  • Cleanroom class: ISO 5


claire® neo at a glance — Key characteristics
  • High-resolution touch display: Precise control and monitoring of operating parameters
  • Ergonomic design: Adjustable working height and comfortable access, including for 3-filter units
  • GreenTec Energy Efficiency: Optimized airflow and components to reduce energy consumption
  • HEPA cartridge filter with noise-optimized design
  • Automatic on/off function for energy savings
  • Bright, dimmable LED lighting: Glare-free illumination for precise work
  • Modular widths for integration into existing facilities
  • Optimized workplace conditions: Low noise, ergonomic layout and high-quality illumination


Functional principle
Class II cabinets use a two- or three-stage HEPA filtration system. Three-filter configurations add an additional HEPA filter under the work surface to capture particles at the point of generation, reducing contamination of ducts, fans and components — a common requirement in cytostatic production.

Requirements
  • Protection of personnel, products and prevention of cross-contamination via HEPA filtration and controlled airflow
  • Suitable for aseptic production: sterile preparation of cytostatics, parenterals and other sensitive CMR substances
  • Compliant for work with microbiological safety levels S1–S4


Technical specifications
  • Standards: DIN EN 12469, DIN EN 12980
  • Filter type: HEPA 14
  • Cleanroom class: ISO 5
  • HEPA cartridge filter with noise-optimized design
  • High-resolution touch display for precise control
  • Energy savings: ECO and Energy-Save modes reduce consumption by 9–17% vs previous model; main components designed for >15 years service life
  • Functional principle: Class II cabinet with two or three HEPA filters; optional third filter beneath work surface for cytostatics
  • External (W x D x H) mm — claire® neo 120: 1200 x 800 x 1947–2317
  • Internal workspace (W x D x H) mm — claire® neo 120: 1100 x 620 x 695
  • External (W x D x H) mm — claire® neo 150: 1500 x 800 x 1947–2317
  • Internal workspace (W x D x H) mm — claire® neo 150: 1400 x 620 x 695
  • External (W x D x H) mm — claire® neo 180: 1800 x 800 x 1947–2317
  • Internal workspace (W x D x H) mm — claire® neo 180: 1700 x 620 x 695
  • External (W x D x H) mm — claire® neo 210: 2100 x 800 x 1947–2317
  • Internal workspace (W x D x H) mm — claire® neo 210: 2000 x 620 x 695
